Name: IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA-P
Price: 21.00 USD
Availability: InStock

Evde > Ürünler > Compact Pressure Sensor >

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

IP65 gas pressure sensor

304SST gas pressure sensor

304SST Oil Pressure Sensor

Menşe yeri:

HEFEI, ÇİN

Marka adı:

WNK

Sertifika:

CE, SGS, ISO9001

Model numarası:

WNK80MA-P

Bize Ulaşın

Teklif Et

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Product Details

Basınç aralığı:

0- 6Mpa

Doğruluk Derecesi:

%0,5, %1,0FS

Medya:

Gaz, Hava, Su, Yağ, Yağlayıcı

IP Kanıtı:

IP67

Tepki Süresi:

<2ms

Güç:

5VDC, 9-30VDC

Çalışma Sıcaklığı:

-40C - 40C

Vurgulamak:

IP65 gas pressure sensor

304SST gas pressure sensor

304SST Oil Pressure Sensor

Payment & Shipping Terms

Min sipariş miktarı

5 parça

Fiyat

negotiable

Ambalaj bilgileri

Standart İhracat Ambalajı

Teslim süresi

7-10 iş günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

Ayda 5000 adet

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

En İyi Fiyatı Alın

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

En İyi Fiyatı Alın

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

En İyi Fiyatı Alın

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

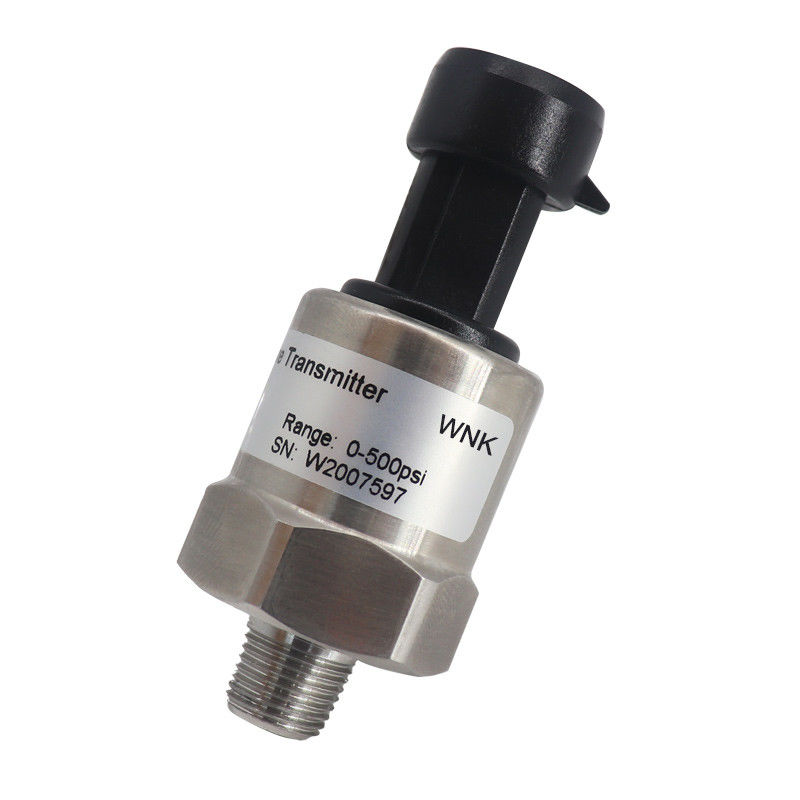

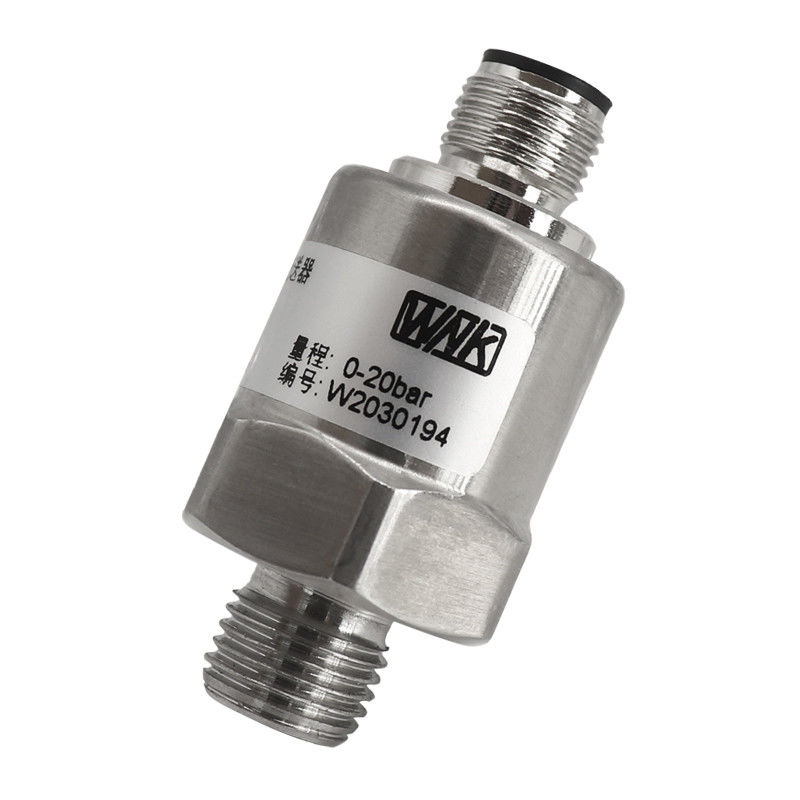

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump

Quick Information

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Specifications

Applicable media	Liquid, Gas
Pressure range	0-20kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parker joint, customization
Mechanical connection	G1/4, 1/8NPT,M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Application:

- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump 0
