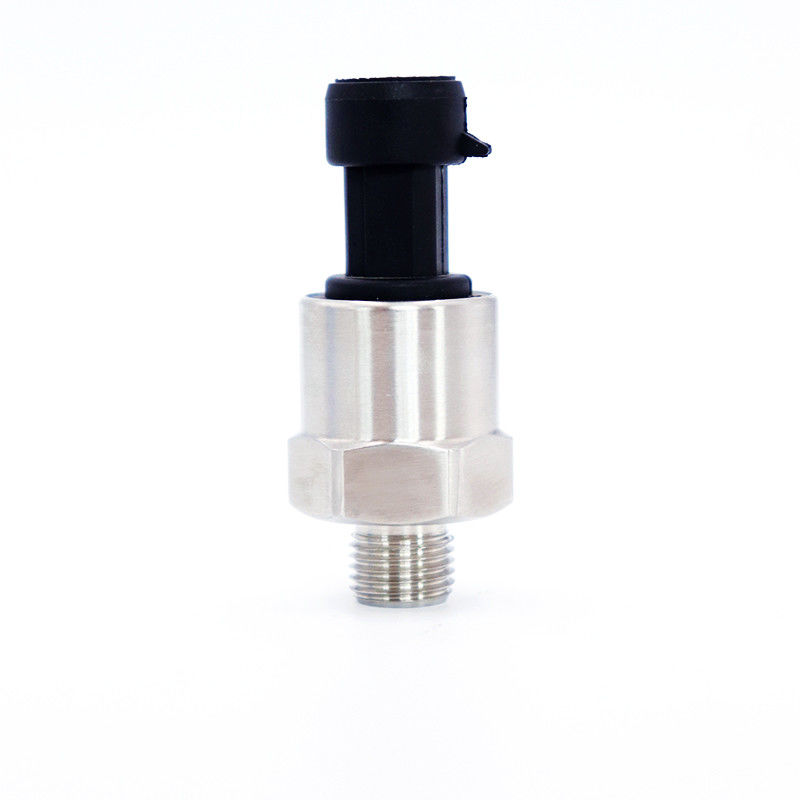

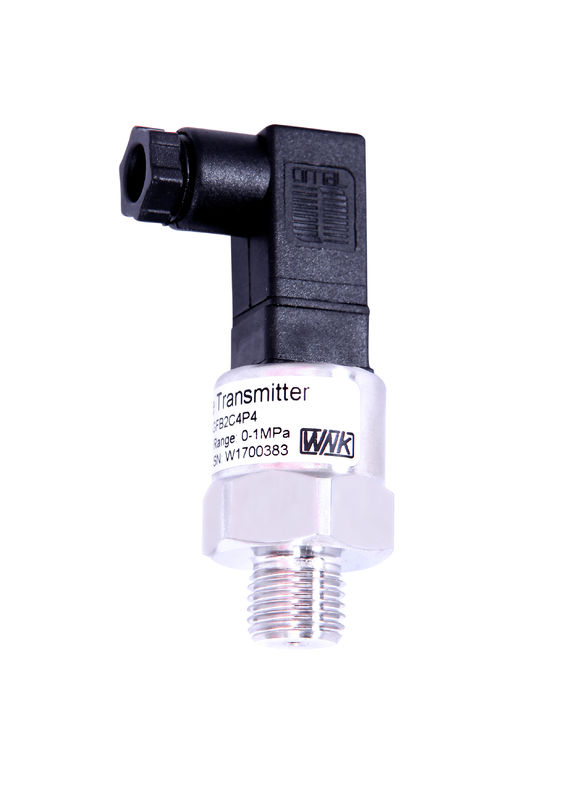

Name: WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 21.00 USD
Availability: InStock

Evde > Ürünler > Compact Pressure Sensor >

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

WNK 4 - 20ma Pressure Transmitter

IP65 4 - 20ma Pressure Sensor

IP65 4 - 20ma Pressure Transmitter

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE&UL

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Product Details

Çıkış:

24VDC/12VDC/5VDC/3,3V

Basınç aralığı:

0~15 MPa

Ölçülen medya:

Sıvı, gaz ve buhar

Elektrik bağlantısı:

Packard, M12, DIN43650, Kablo

Muhafaza malzemesi:

Alüminyum/Pirinç/SST 304

Anahtar kelimeler:

Basınç Sensörü

IP oranı:

IP65

Proses bağlantısı:

G1/2, G1/4, M2x1.5NPT1/4, özelleştirme

Vurgulamak:

WNK 4 - 20ma Pressure Transmitter

IP65 4 - 20ma Pressure Sensor

IP65 4 - 20ma Pressure Transmitter

Payment & Shipping Terms

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Standart Ambalaj veya ihtiyacınıza göre

Teslim süresi

3-5 gün

Ödeme koşulları

T/T, PayPal, Batı Birliği

Yetenek temini

1000

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

En İyi Fiyatı Alın

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

En İyi Fiyatı Alın

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

En İyi Fiyatı Alın

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

WNK 4-20ma 0.5-4.5V Pressure Sensors 150Psi Pressure Transmitter

WNK 4-20ma150Psi Pressure Transmitter

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-60bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.2% 0.5% 1.0% FS.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
