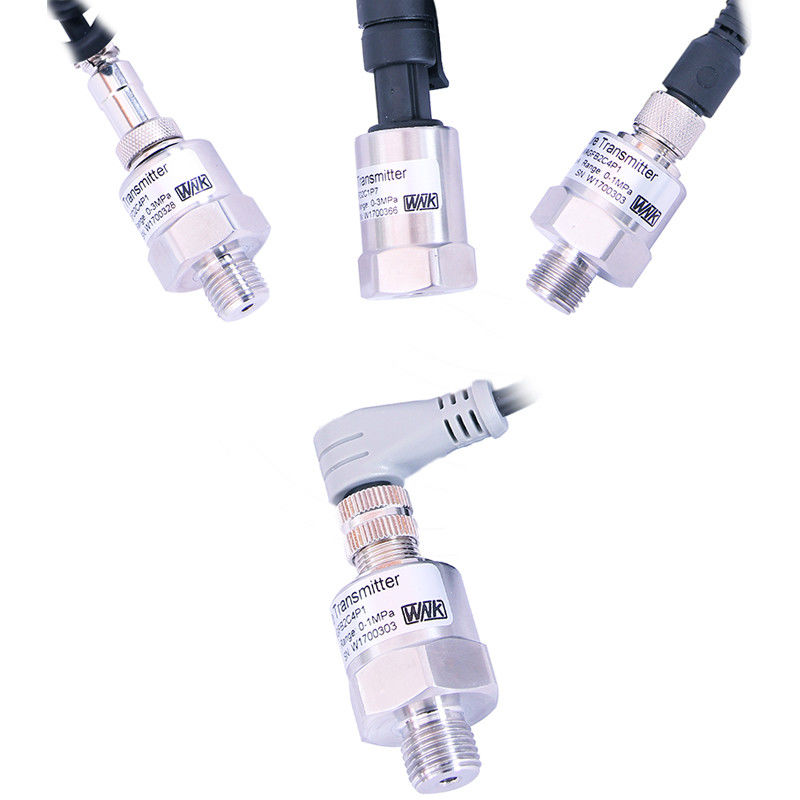

Name: OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 21.00 USD
Availability: InStock

Evde > Ürünler > Compact Pressure Sensor >

OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration

oem pressure sensor

precision pressure sensor

Menşe yeri:

HEFEI, ÇİN

Marka adı:

WNK

Sertifika:

CE, SGS, ISO9001

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

OEM Compact Pressure Sensor Gas Water Pressure Sensor High Integration

Product Details

Güç Kaynağı:

5VDC 9-32V

Menzil:

0-10MPa

Doğrusal doğruluk:

%0,25 FS, %0,5 F, %1,0 FS

Basınç portu:

G1/4, NPT1/8 diğer

Sensör Tipi:

Seramik Kapasitif Sensör

Elektrik bağlantısı:

Küçük Hirschman, kablo uçları

Giriş Koruması:

IP67 IP65

Vurgulamak:

oem pressure sensor

precision pressure sensor

Payment & Shipping Terms

Min sipariş miktarı

5 parça

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

7-10 iş günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

Ayda 5000 adet

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

En İyi Fiyatı Alın

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

En İyi Fiyatı Alın

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

En İyi Fiyatı Alın

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Stainless Steel Absolute Micro Compact Pressure Sensor 4-20ma 0.5-4.5V, I2C

Description

This product is high integration, small size, high precision, good stability, fast response speed, low power consumption, good consistency, resistance to overload ability strong impact and interference. With the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.

Features :
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.
