100psi / 150psi / 200psi Compact Pressure Sensor For Air Compressor / Pump

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor IP68

Menşe yeri:

HEFEI, ÇİN

Marka adı:

WNK

Sertifika:

CE, SGS, ISO9001

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

100psi / 150psi / 200psi Compact Pressure Sensor For Air Compressor / Pump

Product Details

Kapasite:

-100Kpa - 600 mbar

Güç Girişi:

Muhafaza(-40 ~ 85°C) Kürek（-10 ~ 85°C）

Kesinlik:

+/-%0,5, %1,0FS

Tepki Süresi:

<=2,0 ms

Çalışma Sıcaklığı:

-40C~70C

Çıkış:

0.5V-4.5V

Giriş Koruması:

IP68

Vurgulamak:

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor IP68

Payment & Shipping Terms

Min sipariş miktarı

5 parça

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

7-10 iş günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

Ayda 5000 adet

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

En İyi Fiyatı Alın

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

En İyi Fiyatı Alın

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

En İyi Fiyatı Alın

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

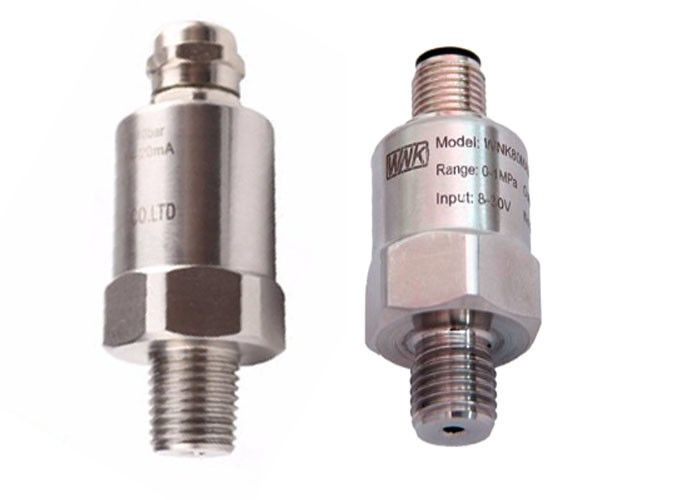

100psi 150psi 200psi Compact Pressure Sensor Transducer For Air Compressor, Pump

Name: 100psi / 150psi / 200psi Compact Pressure Sensor For Air Compressor / Pump
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 21.00 USD
Availability: InStock

Description

1. Suitable for all kinds of hydraulic, pneumatic pressure measurement

2.Suitable for civil use product batch

3.Static accuracy: plus or minus 0.5% or 1.0% FS

4.Pressure range can be customized according to customer requirements

5.Wide range of temperature compensation

6.Medium for non-corrosive gas, water, oil, etc

Features:

Easy removal, carbon steel connection more firmly.

Stainless steel is durable, sealed waterproof line, imported chips.

Wiring: red +, black -, yellow output

Specification:

Working Voltage: 5.0 VDC, or other 9-30VDC

Output Voltage: 0.5-4.5 VDC, 4-20ma, and other

Working Current: <=10 mA

The Biggest Pressure: 3-5 times

Working Temperature Range:-40-70 Celsius Degree

Storage Temperature Range: 0-100 Celsius Degree

Measuring Error: +_ 1.5 %FSO

Response Time: <=2.0 ms

Cycle Life: 500,000 pcs

Tags：

precision pressure sensor

electronic pressure sensor

oem pressure sensor
