Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Menşe yeri:

Hefei, CN

Marka adı:

WNK

Sertifika:

SGS, ISO9001:2015

Model numarası:

SPS

Bize Ulaşın

Teklif Et

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

Product Details

Çıkış:

4...20mA/0...5V+PNP+MODBUS

Kesinlik:

≤0,5 FS

Ölçüm Aralığı:

0 ~100mH2O

Uzun vadeli istikrar:

Yılda ±%0,3 tam ölçek

Güç Kaynağı:

12...30VDC

Görüntülemek:

OLED

Çalışma Sıcaklığı:

-30~80 Derece C

Medya sıcaklığı:

0~60 Derece C

Anahtar Çıkışı:

PNP veya NPN

Anahtar Türü:

normal açık veya normal kapalı

Giriş Koruması:

IP65

Elektrik konnektörü:

M12 5pin veya 8pin

Vurgulamak:

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

5-8 İş Günü

Ödeme koşulları

Banka havalesi, Western Union

Yetenek temini

Ayda 5000PCS

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

En İyi Fiyatı Alın

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

En İyi Fiyatı Alın

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

En İyi Fiyatı Alın

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Introduction - SPS Intelligent Electronic Pressure Switch with OLED Display

Electronic Pressure Switch 10bar 100bar with Digital RS485O Output

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Production Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

Dimension

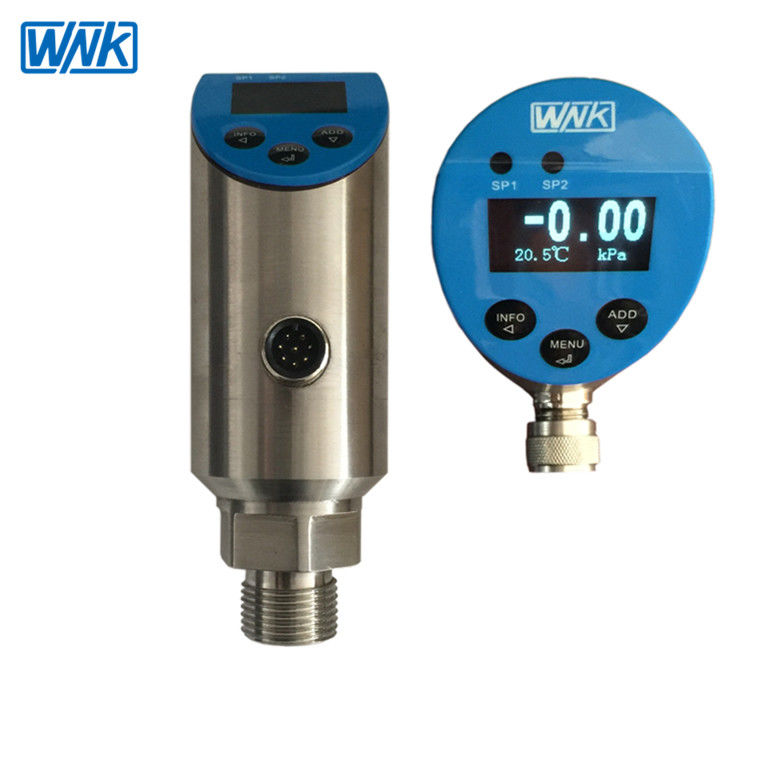

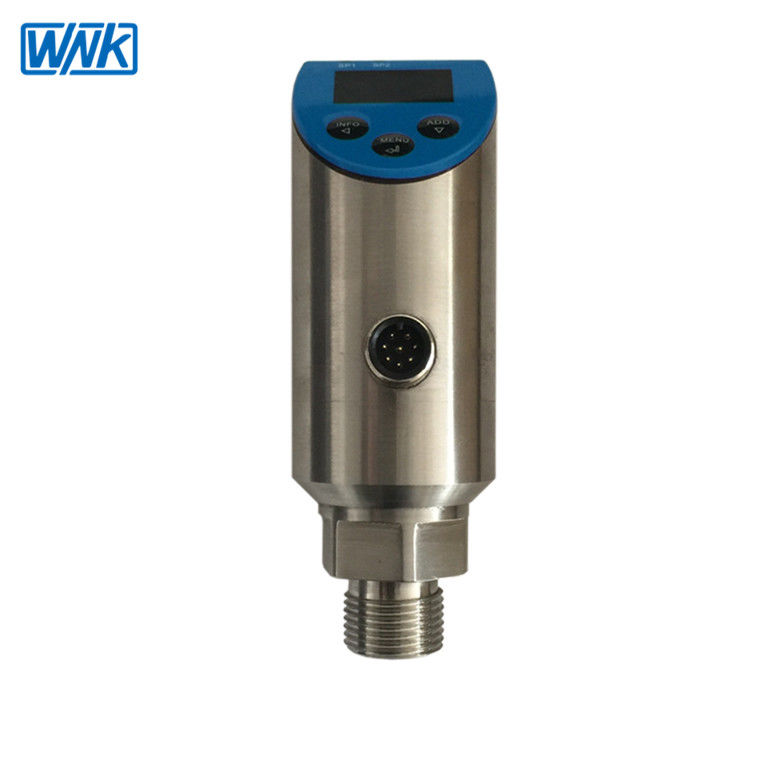

Product Show

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display 2
