Name: 0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk83ma
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

Menşe yeri:

Çin

Marka adı:

WNK

Model numarası:

Wnk83ma

Bize Ulaşın

Teklif Et

Product Details

Basınç aralığı:

0-2MPa,0-20bar,0-2000kPa

Çıkış:

0,5-4,5VDC

Güç Kaynağı:

4.75-5.25VDC

Malzeme:

Pirinç

Süreç konektörü:

G1/4

Elektrik konnektörü:

Kablo çıkışı

Kesinlik:

% 1

Ürün Adı:

Korozyon Önleyici Fonksiyonlu 0.5-4.5V Kompakt Seramik Pirinç Basınç Sensörü

Vurgulamak:

5.25VDC compact pressure transducer

2MPa compact pressure sensor

Ceramic Brass compact pressure transducer

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Her parça köpük korumalı ayrı kartona veya müşterinin isteğine göre

Teslim süresi

8-10 iş günü

Ödeme koşulları

D/A, D/P, T/T, Western Union, Paypal

Yetenek temini

Haftada 2000 PCS

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Brass Pressure Sensor

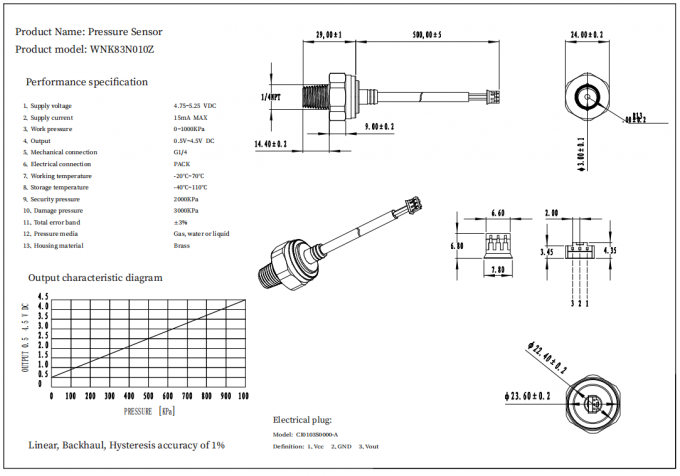

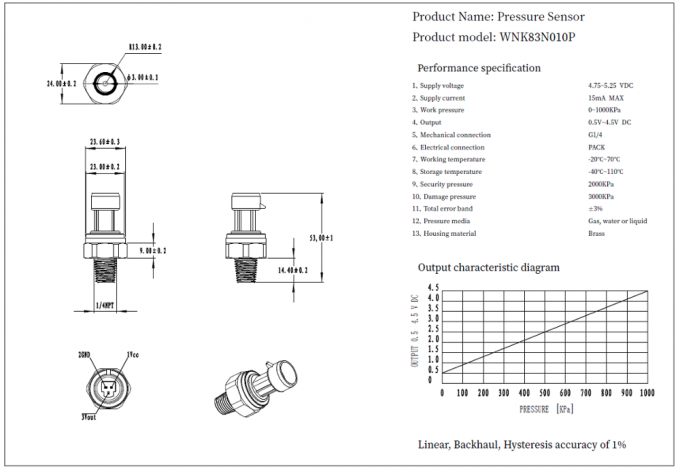

Mechanical Dimension:

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 0

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

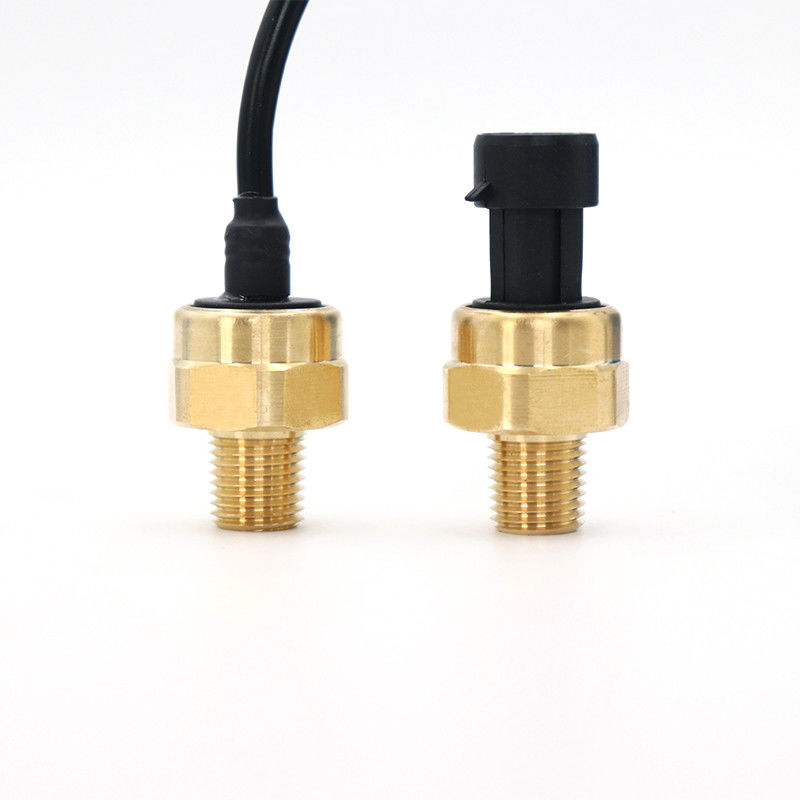

PRODUCT SHOW

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 5

Packaging

0.5-4.5V Ceramic Brass Pressure Sensor Anti Corrosion 6

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
