10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

10m diesel fuel level sensor

ABS housing diesel fuel level sensor

10m water tank fill sensor

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE

Model numarası:

PWCS72

Bize Ulaşın
Teklif Et
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing
Product Details
Ölçüm Aralığı:
0,3-10 m
Proses bağlantısı:
G1 1/2A veya flanş, Braket
Muhafaza malzemesi:
Alüminyum/ABS
Kesinlik:
0%25 FS
Çıkış:
4-20 MA/HART/RS485/Modbus
Patlamaya Dayanıklı Sınıf:
Exia IIB T6 Ga
Vurgulamak:

10m diesel fuel level sensor

,

ABS housing diesel fuel level sensor

,

10m water tank fill sensor

Payment & Shipping Terms
Min sipariş miktarı
1 Adet
Ambalaj bilgileri
Nötr karton paketleme veya gereksiniminize göre.
Teslim süresi
5-8 İş Günü
Ödeme koşulları
D/P, T/T, Western Union, Paypal
Yetenek temini
5000/ parça/ ay
RELATED PRODUCTS
İyi fiyat IP68 Stainless steel Dirty Water Submersible Level Sensor çevrimiçi Video

IP68 Stainless steel Dirty Water Submersible Level Sensor

En İyi Fiyatı Alın
İyi fiyat 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well çevrimiçi Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

En İyi Fiyatı Alın
İyi fiyat 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 çevrimiçi Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

En İyi Fiyatı Alın
İyi fiyat 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile çevrimiçi Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

En İyi Fiyatı Alın
Bize Ulaşın
Hemen İletişime Geçin
Product Description

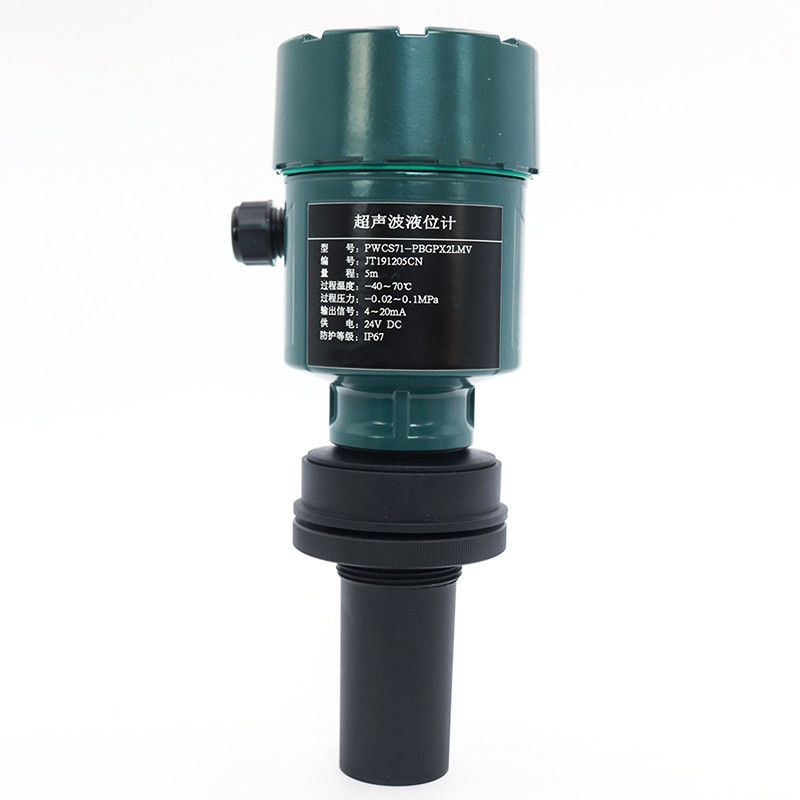

Ultrasonic Level Sensor Transmitter
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 0

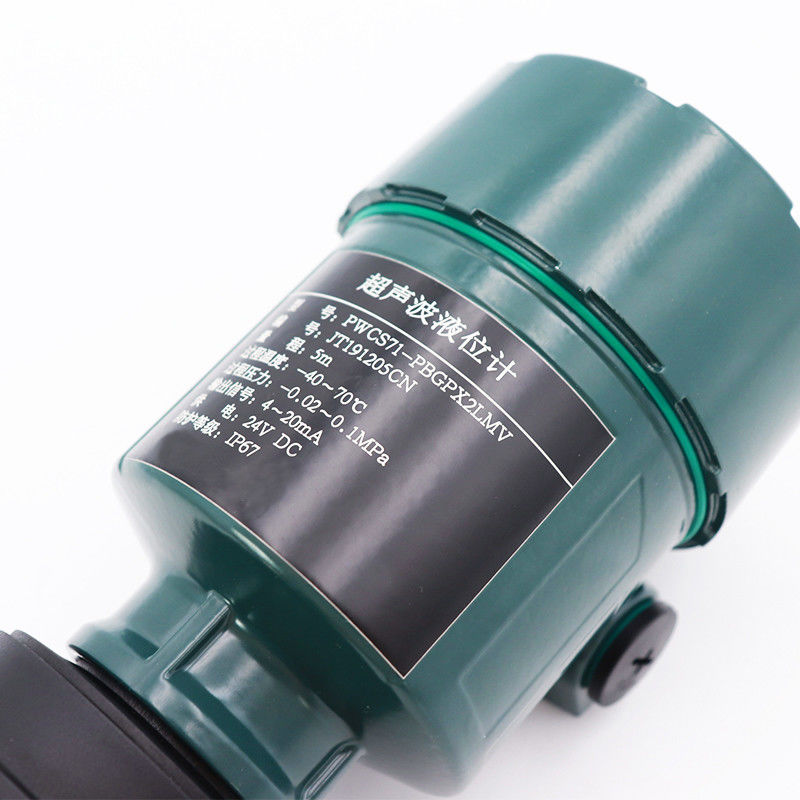

Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 1

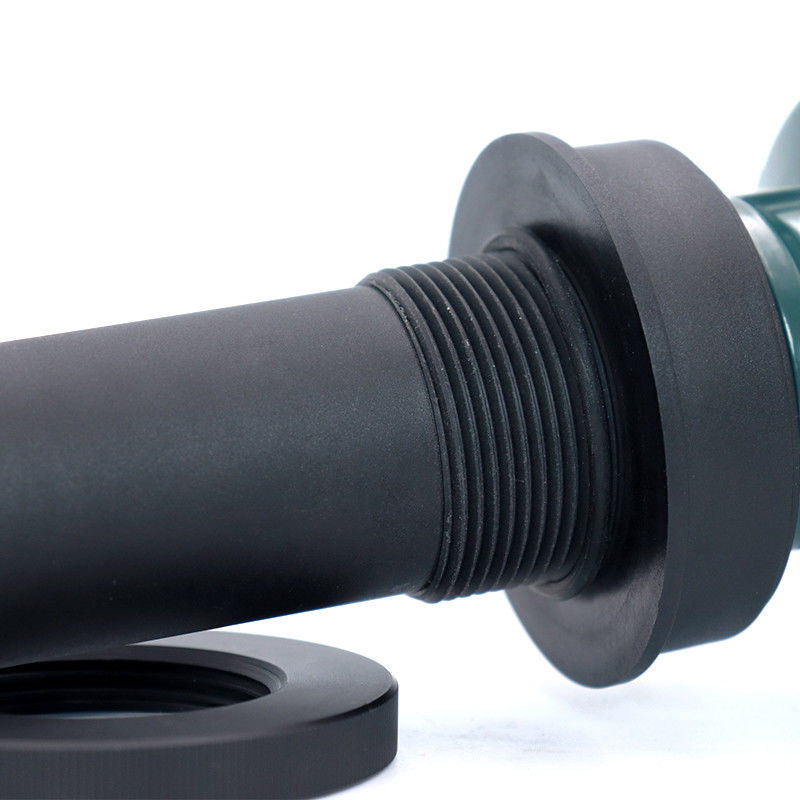

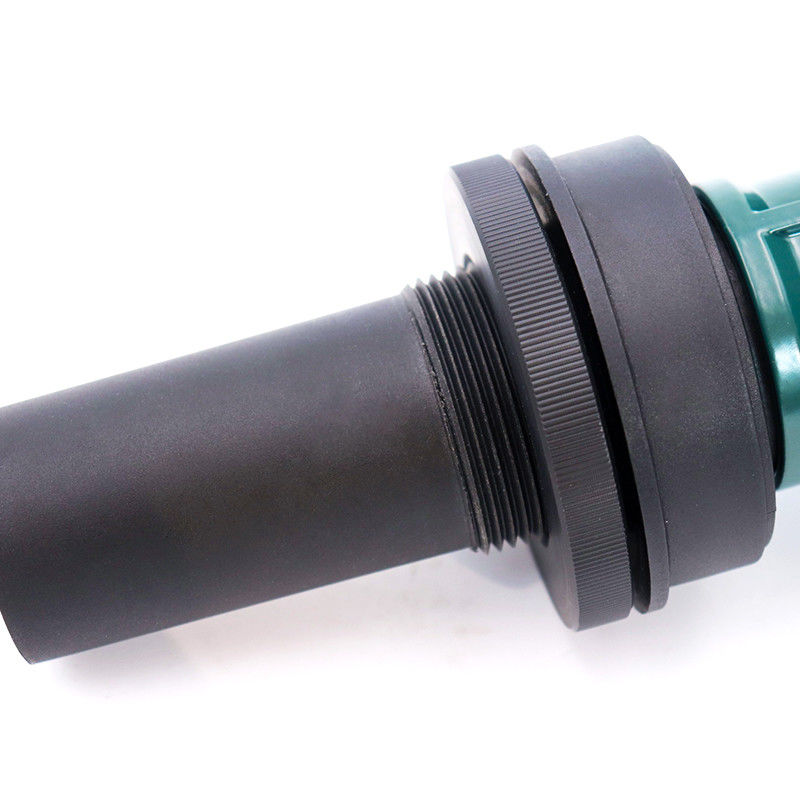

Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 2

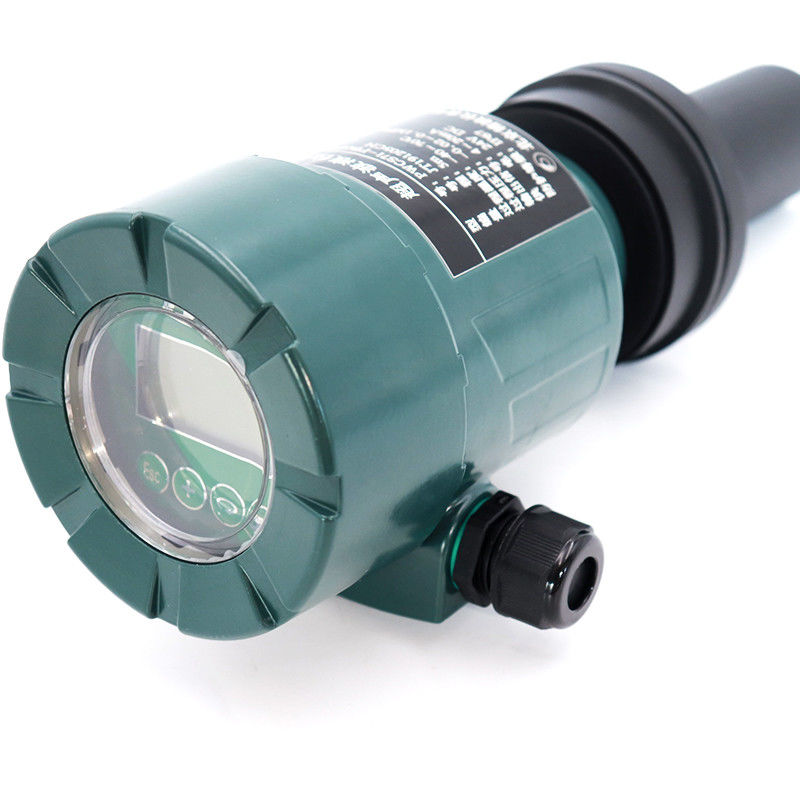

High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 3


Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
Application Case
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 4
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 5
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 6
Product Paramenters
Model
Measuring Range
Process Connection
Transducer Material
PWCS71
0.25-5m
G11/2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS72
0.3-10m
G2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS73
0.4-10m
M66*2/Flange/Bracket
PA66+GF30/PVDF
PWCS74
0.5-20m
M95*2/Flange/Bracket
PA66+GF30
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 7
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 8
