Name: ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 20.00 USD
Availability: InStock

Evde > Ürünler > Air Pressure Sensor >

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter

4.5V absolute pressure transmitter

ROHS absolute pressure transmitter

60bar absolute pressure transducer

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE/ROHS

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

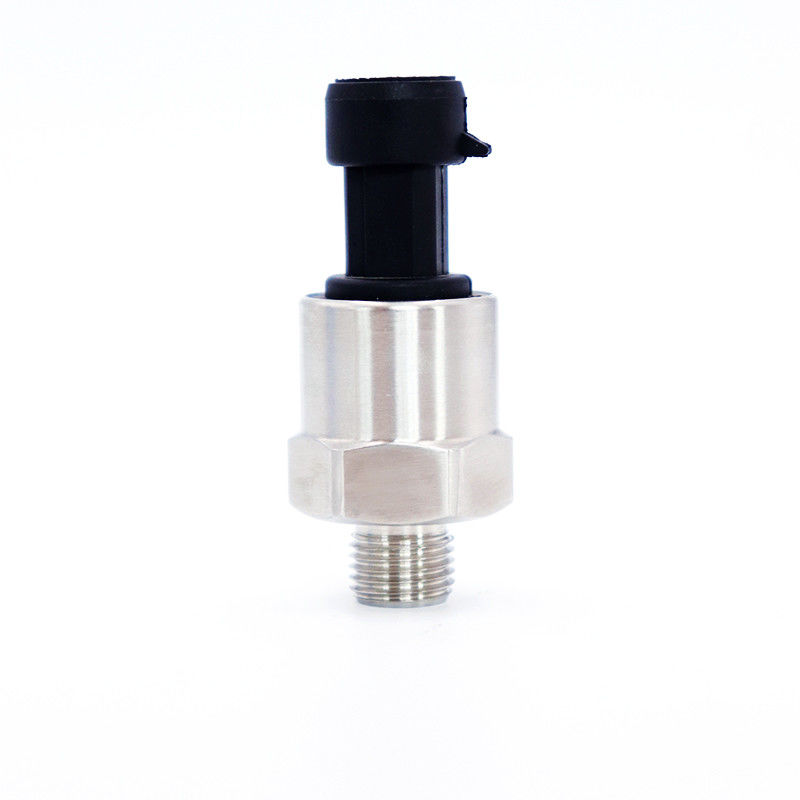

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter

Product Details

Basınç aralığı:

0-60bar

Çıkış:

I2C, SPI, 0,5-4,5V, 4-20ma ve özelleştirme

Sensör Tipi:

IOT Basınç Sensörü

Kesinlik:

% 1

Tazminat sıcaklığı:

-20 -70°C

Muhafaza malzemesi:

paslanmaz çelik 304

Vurgulamak:

4.5V absolute pressure transmitter

ROHS absolute pressure transmitter

60bar absolute pressure transducer

Payment & Shipping Terms

Min sipariş miktarı

1 fiyat

Fiyat

negotiable

Teslim süresi

5-8 İş Günü

Ödeme koşulları

Banka havalesi, Western Union

Yetenek temini

Aylık 5000 Adet/Adet Basınç Transmitteri

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

En İyi Fiyatı Alın

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

En İyi Fiyatı Alın

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

En İyi Fiyatı Alın

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Water Pressure Sensor Absolute Pressure Transmitter Price

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0~60bar
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter 0
