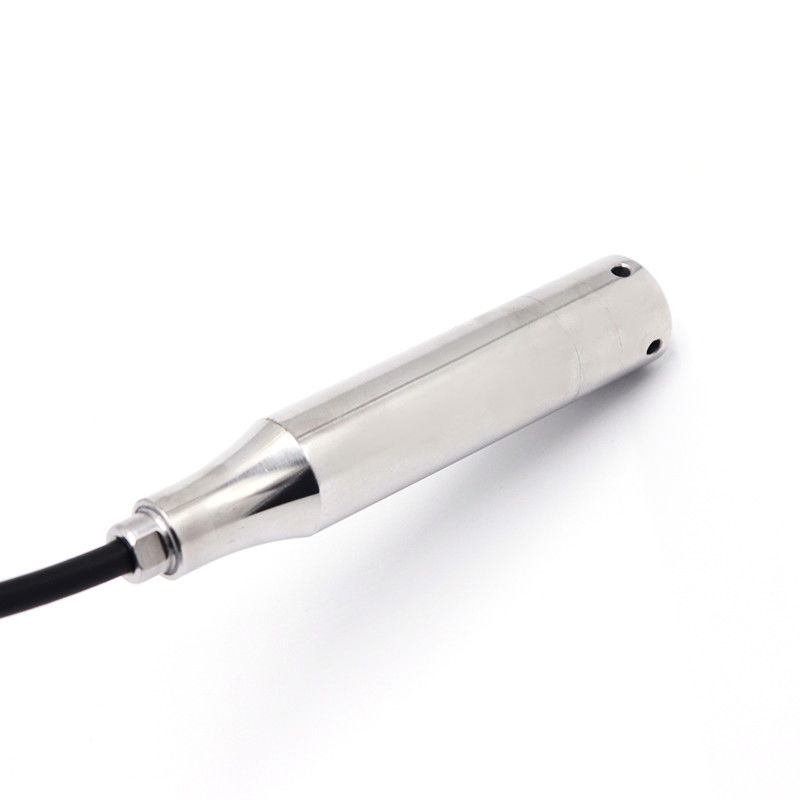

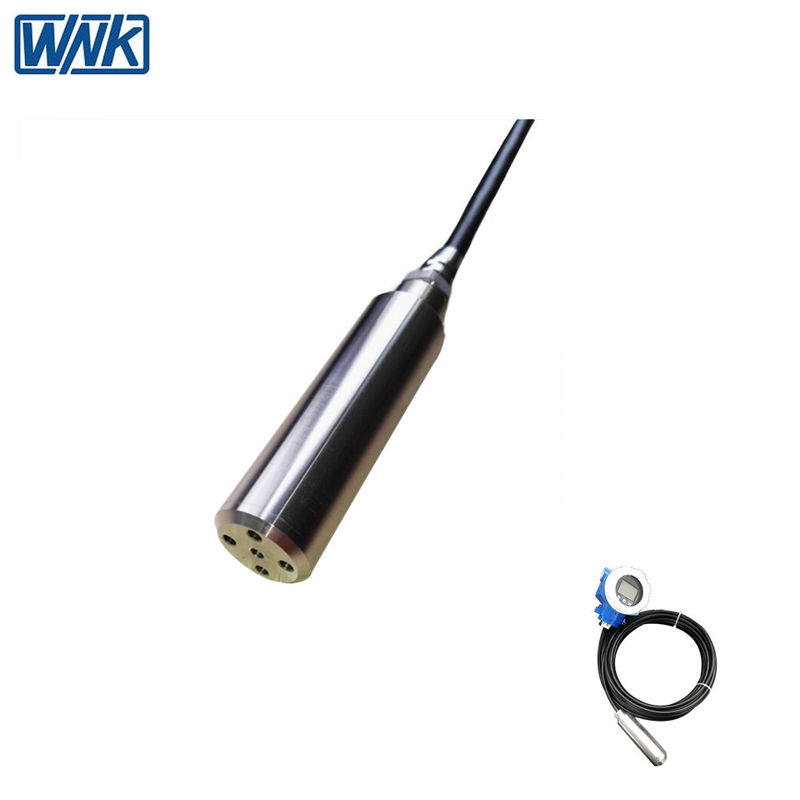

Name: 4-20mA 0.5-4.5V Immersion Analog Submersible Level Sensor For Level Measurement
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010
Price: 417.00 USD
Availability: InStock

Evde > Ürünler > Submersible Level Sensor >

4-20mA 0.5-4.5V Immersion Analog Submersible Level Sensor For Level Measurement

Immersion analog water level sensor

4.5V submersible level transducer

steel housing submersible level transmitter

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

ISO, CE

Model numarası:

WNK8010

Bize Ulaşın

Teklif Et

4-20mA 0.5-4.5V Immersion Analog Submersible Level Sensor For Level Measurement

Product Details

Kesinlik:

T/T (%30 depozito, teslimattan önce %70 bakiye)

Çıkış:

4-20mA, 1-5V,0-10V,0,5-4,5V, I2C

Basınç aralığı:

0-0.5~200mH2O

Güç Kaynağı:

24V/12V/5V/3.3V

Ölçülen medya:

Su, sıvı

Muhafaza malzemesi:

Paslanmaz çelik

IP Derecelendirmesi:

IP68

Maksimum Aşırı Yük:

Sensör Aralığının %150'si

Başvuru:

Tank, havuz, nehir, su altı vb. açık kap ölçümü için

Vurgulamak:

Immersion analog water level sensor

4.5V submersible level transducer

steel housing submersible level transmitter

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Standart ihracat karton kutu veya ihtiyacınıza göre

Teslim süresi

5-7 iş günü

Ödeme koşulları

L/C, T/T, Western Union, MoneyGram

Yetenek temini

Ayda 5000 parça/parça

IP68 Stainless steel Dirty Water Submersible Level Sensor

En İyi Fiyatı Alın

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

En İyi Fiyatı Alın

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

En İyi Fiyatı Alın

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Water Level Sensor For Level Measurement

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V, I2C
Measured range	0-200 meters
Max overload	150% of sensor range
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

2. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

3. With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

Product Dimension & Installation

4-20mA 0.5-4.5V Immersion Analog Submersible Level Sensor For Level Measurement 0

Ordering sheet
