Name: Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808N1
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer

1kPa air conditioning pressure transducer

Ventilation air conditioning pressure transducer

Hvac air conditioning pressure sensor

Menşe yeri:

ANHUI, ÇİN

Marka adı:

WNK

Model numarası:

WNK808N1

Bize Ulaşın

Teklif Et

Product Details

Ölçülen medya:

Hava, gaz

Basınç aralığı:

-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa

Çıktı sinyalleri:

2 tel 4-20mA/0-10V/RS485/2xPNP

Kesinlik:

±0,1%FS

Güç Kaynağı:

12-32V DC

Elektrik bağlantıları:

Terminal veya M12

Harici yük:

≥500Ω

Vurgulamak:

1kPa air conditioning pressure transducer

Ventilation air conditioning pressure transducer

Hvac air conditioning pressure sensor

Payment & Shipping Terms

Min sipariş miktarı

1 Takım

Fiyat

negotiable

Ambalaj bilgileri

Koruma ile birlikte tek bir karton ambalajda her set

Teslim süresi

IP40

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

LCD başlığı için -45 ila 85°C,-40 ila 80°C

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

4-20ma Differential Pressure Transmitter For Hvac Ventilation Air Conditioning

Product Description

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

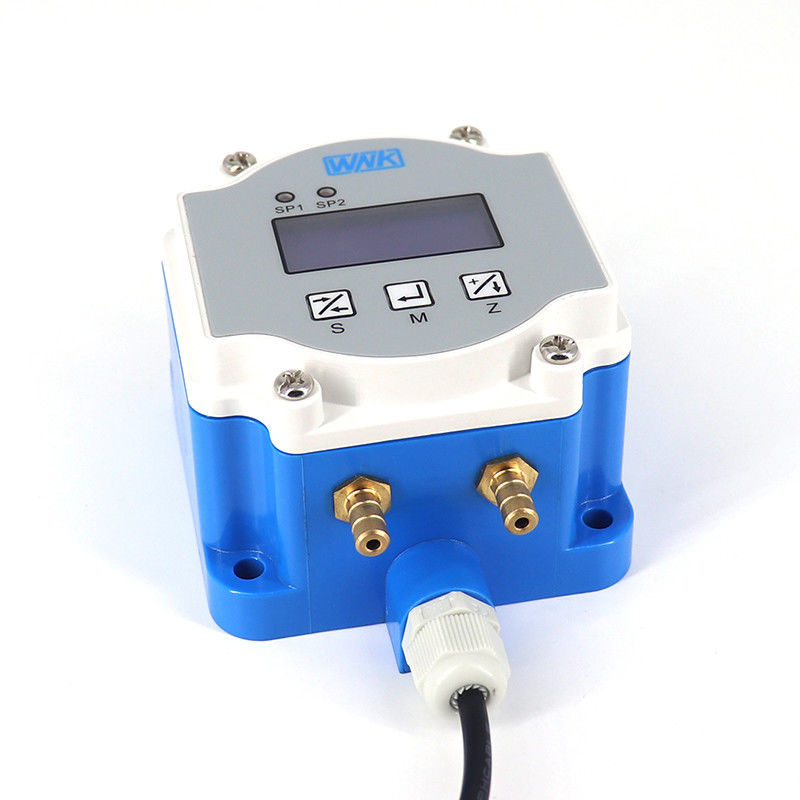

Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer 0

Product Show

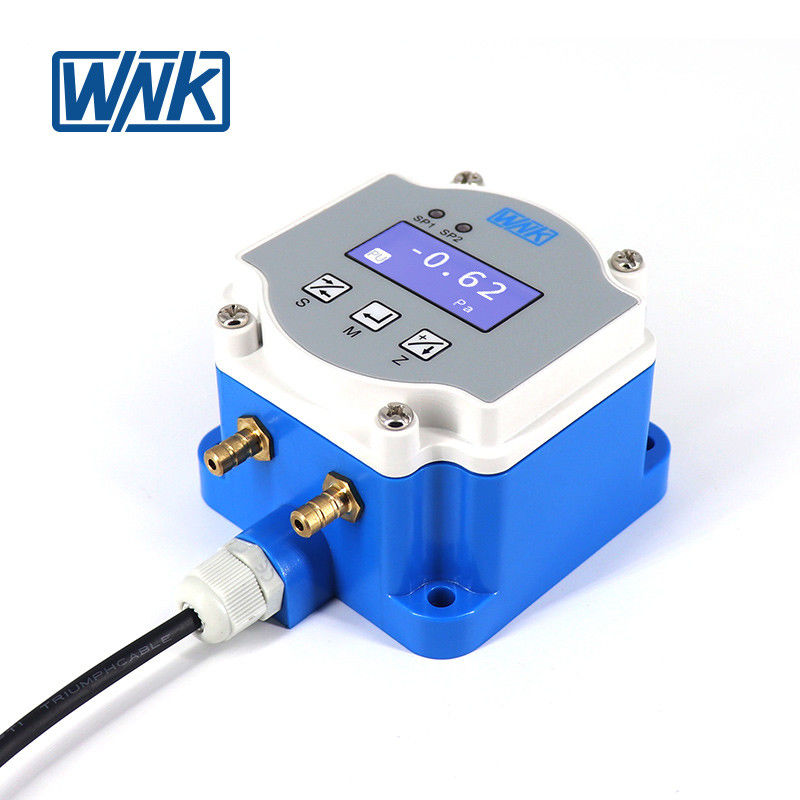

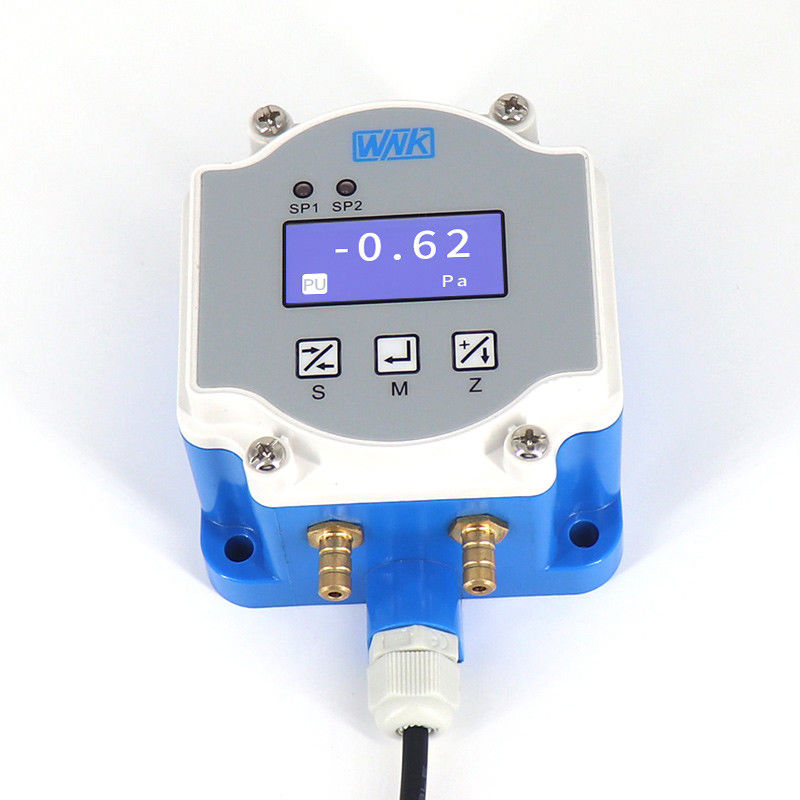

Differential Pressure Hvac Ventilation Air Conditioning Smart Pressure Transducer 1
