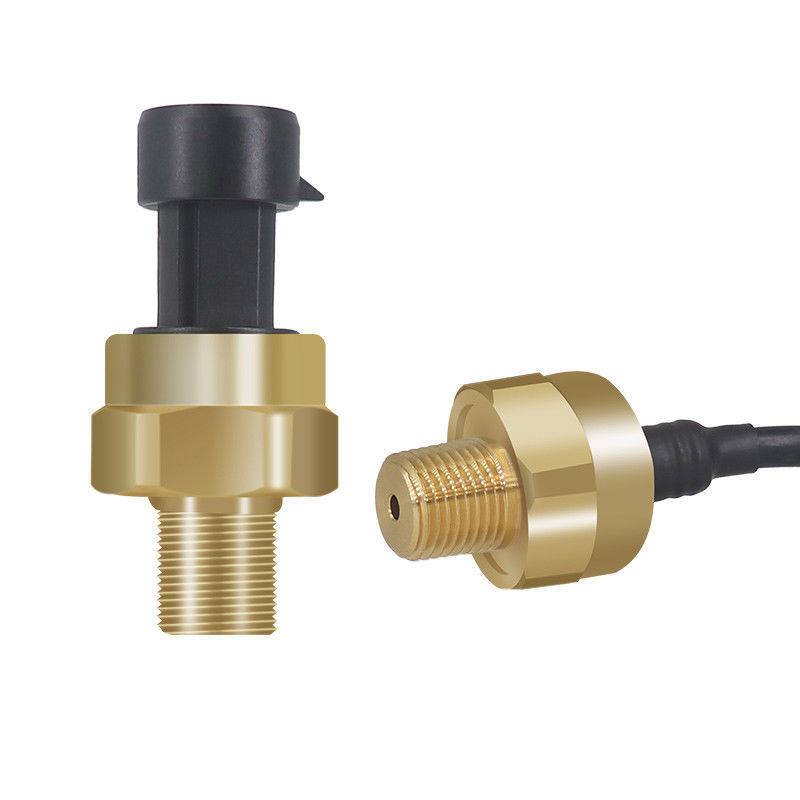

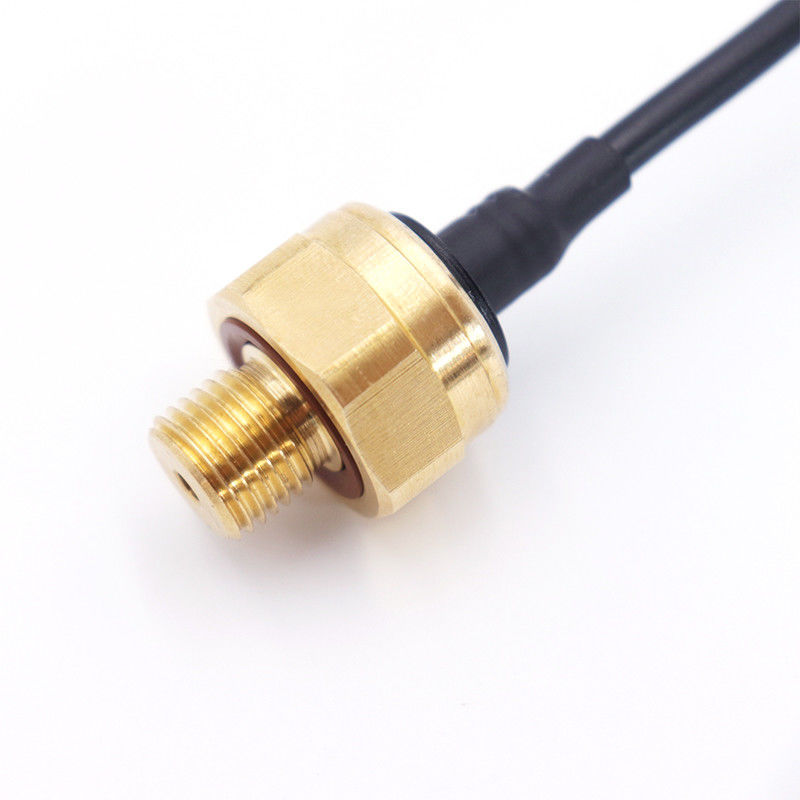

Name: 0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk83ma
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application

Brass Smart Pressure Transmitter

Brass HVAC Pressure Transmitter

2MPa HVAC Pressure Transmitter

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

Model numarası:

Wnk83ma

Bize Ulaşın

Teklif Et

Product Details

Basınç aralığı:

0-2MPa,0-20bar,0-2000kPa

Çıkış:

0,5-4,5VDC

Güç Kaynağı:

4.75-5.25VDC

Malzeme:

Pirinç

Süreç konektörü:

G1/4

Elektrik konnektörü:

Kablo çıkışı

Kesinlik:

% 1

Vurgulamak:

Brass Smart Pressure Transmitter

Brass HVAC Pressure Transmitter

2MPa HVAC Pressure Transmitter

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Her parça köpük korumalı ayrı kartona veya müşterinin isteğine göre

Teslim süresi

8-10 iş günü

Ödeme koşulları

D/A, D/P, T/T, Western Union, Paypal

Yetenek temini

Haftada 2000 PCS

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

This product is in stock, please place an order directly.

If you have any other questions, please feel free to contact us.

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 0

Company Information

Packaging

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
