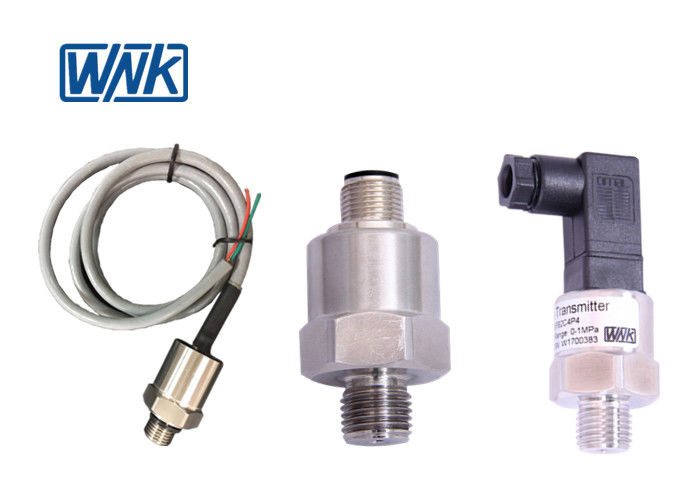

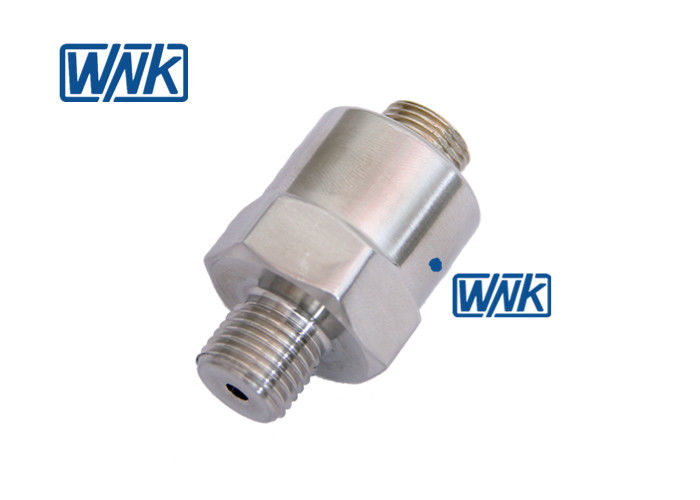

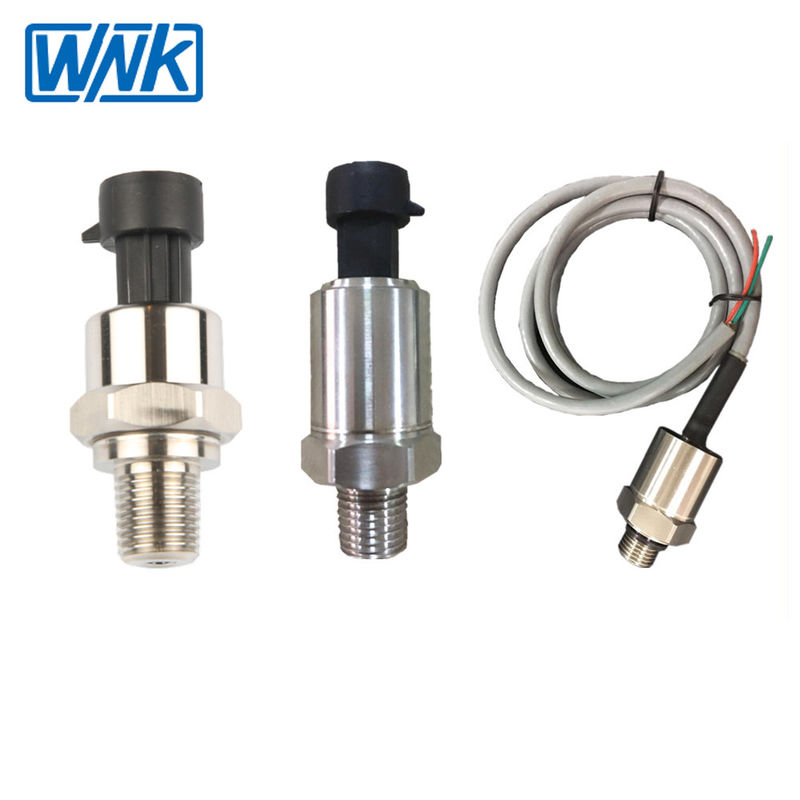

Name: 4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK81MA
Price: 25.00 USD
Availability: InStock

Evde > Ürünler > Water Pressure Sensor >

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam

600bar steam pressure transducer

600bar steam pressure sensor

OEM steam pressure transmitter

Menşe yeri:

Marka adı:

WNK

Sertifika:

CE, ISO9001:2015

Model numarası:

WNK81MA

Bize Ulaşın

Teklif Et

Product Details

Çıkış:

4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V,

Basınç aralığı:

0-600bar

Kesinlik:

%0,5FS, %1FS, %2FS

Çalışma Sıcaklığı:

-40~125°C

Giriş Koruması:

IP67

Yanıt Süresi:

≥1ms

OEM:

OEM, ODM Hoş Geldiniz

Aşırı yük:

2,5x FS

Kanıt baskısı:

3x FS

Muhafaza malzemesi:

SS304, SS316

Vurgulamak:

600bar steam pressure transducer

600bar steam pressure sensor

OEM steam pressure transmitter

Payment & Shipping Terms

Min sipariş miktarı

5 adet

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

5-8 iş günü

Ödeme koşulları

T/T, Western Union, L/C

Yetenek temini

Ayda 5000PCS

5VDC güç kaynağı ve korozyona dayanıklı SS304 konut malzemeleri ile Endüstriyel Basınç Göndericisi

En İyi Fiyatı Alın

Dağınık Silikon Basınç Sensörü 4-20ma 5V 24V Uzun Süreli Basınç İzleme Performansı için Tasarlanmış Sağlam Verici

En İyi Fiyatı Alın

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

En İyi Fiyatı Alın

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning, machinery andrefrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, I2C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0~60bar
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 0

Technical Parameters

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 1

>> Dimensions

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 2
