0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

I2C CNG Pressure Sensor

20ma CNG Pressure Sensor

I2C natural gas pressure sensor

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

CE ISO9001

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

Product Details

Basınç aralığı:

0-60bar

Çıkış:

I2C, 0,5-4,5V, 4-20ma ve Özelleştirme

Yanıt Süresi:

≥1ms

Aşırı yük basıncı:

3-5 kez

Sensör Tipi:

IOT Basınç Sensörü

Çalışma Sıcaklığı:

-40 -135 ° C

Garanti:

12 Ay

Giriş Koruması:

IP67

Kesinlik:

% 1

Tazminat sıcaklığı:

-20 -70°C

Muhafaza malzemesi:

paslanmaz çelik 304

Vurgulamak:

I2C CNG Pressure Sensor

20ma CNG Pressure Sensor

I2C natural gas pressure sensor

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

5-8 İş Günü

Ödeme koşulları

D/A, L/C, T/T, Western Union, Moneygram

Yetenek temini

Ayda 5000 parça/parça

Zorlu Koşullarda POE Yağ Basıncının Uzun Süreli İzlenmesi İçin Tasarlanmış 40 ila 85 Derece Santigrat IOT Basınç Sensörü

En İyi Fiyatı Alın

Gaz Sıvı Basınç Orta IOT Basınç Algılayıcısı Difüzyon Silikon İletici Tipi 4-20ma Çıktı Ve Özelleştirme Seçenekleri

En İyi Fiyatı Alın

Giriş 47552VDC Hava Basıncı Sensörü OEM Çeşitli Endüstriyel Denetleyiciler ve Veri Alım Sistemleri ile Uyumludur

En İyi Fiyatı Alın

Çıktı 4-20ma ve özelleştirme IOT Basınç Sensörü Yılda % 0.2 FS altında uzun vadeli istikrar sunar OEM Tasarımı

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

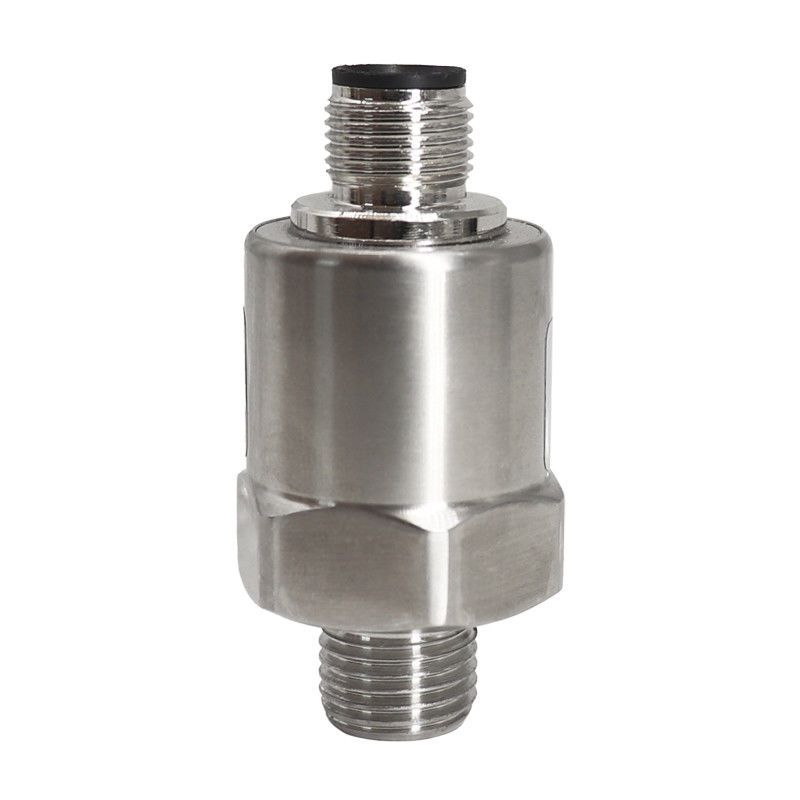

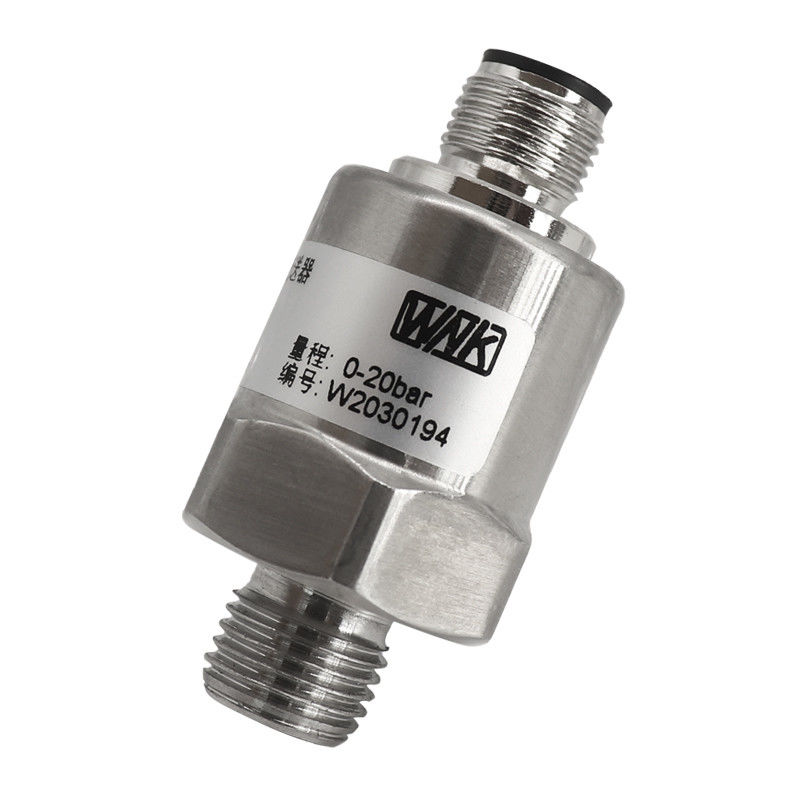

0-60bar 4-20ma I2C Low Cost Capacitiance Pressure Sensor For Liquid Gas Water

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range	0-20kPa~50MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Electrical connection

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 0

Application:

WNK80MA is solution for below applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 1

Company

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 3

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.
