1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection

1000kPa 4.5VDC Ceramic Capacitive Pressure Sensor 1/4NPT Connection

4.5VDC ceramic capacitive pressure sensor

1000kPa ceramic capacitive pressure sensor

1000kPa capacitive pressure transmitter

Menşe yeri:

Çin (Anakara)

Marka adı:

WNK

Sertifika:

CE

Model numarası:

Wnk83ma

Bize Ulaşın
Teklif Et
Product Details
Kesinlik:
% 1
Ölçülen medya:
Sıvı, gaz ve buhar
Basınç aralığı:
0-1000kPa
Çıkış Sinyali:
0.5-4.5 VDC
Güç Kaynağı:
4.75-5.25 VDC
Malzeme:
Pirinç
Proses bağlantısı:
1/4npt
Elektrik bağlantısı:
Packard
Vurgulamak:

4.5VDC ceramic capacitive pressure sensor

,

1000kPa ceramic capacitive pressure sensor

,

1000kPa capacitive pressure transmitter

Payment & Shipping Terms
Min sipariş miktarı
1 adet
Fiyat
negotiable
Ambalaj bilgileri
standart ihracat karton kutu
Teslim süresi
5-8 iş günü
Ödeme koşulları
Banka havalesi, Western Union
Yetenek temini
5000+Adet+Aylık
Product Description
Product Description

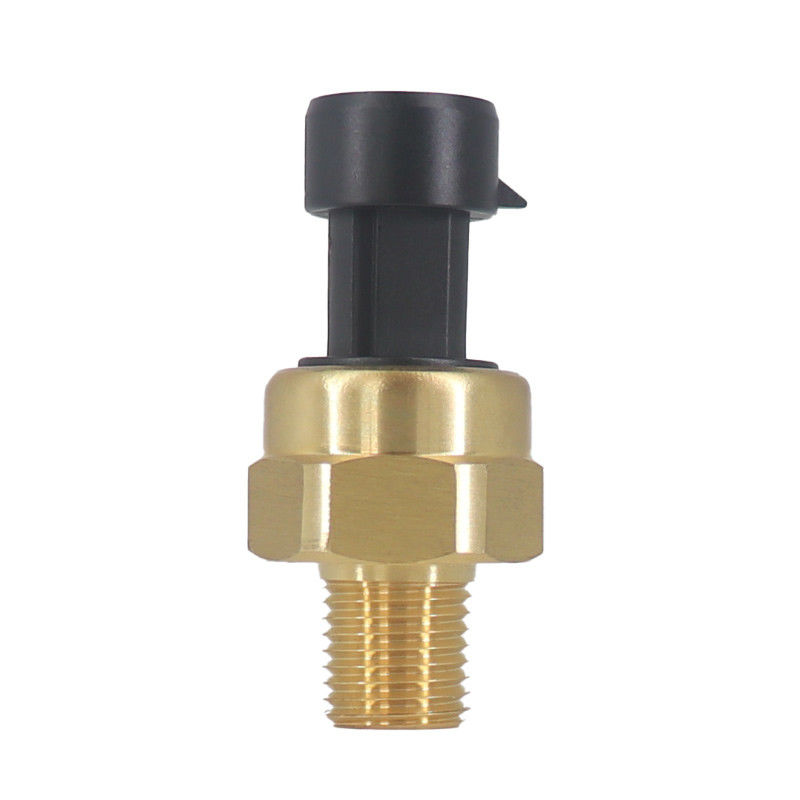

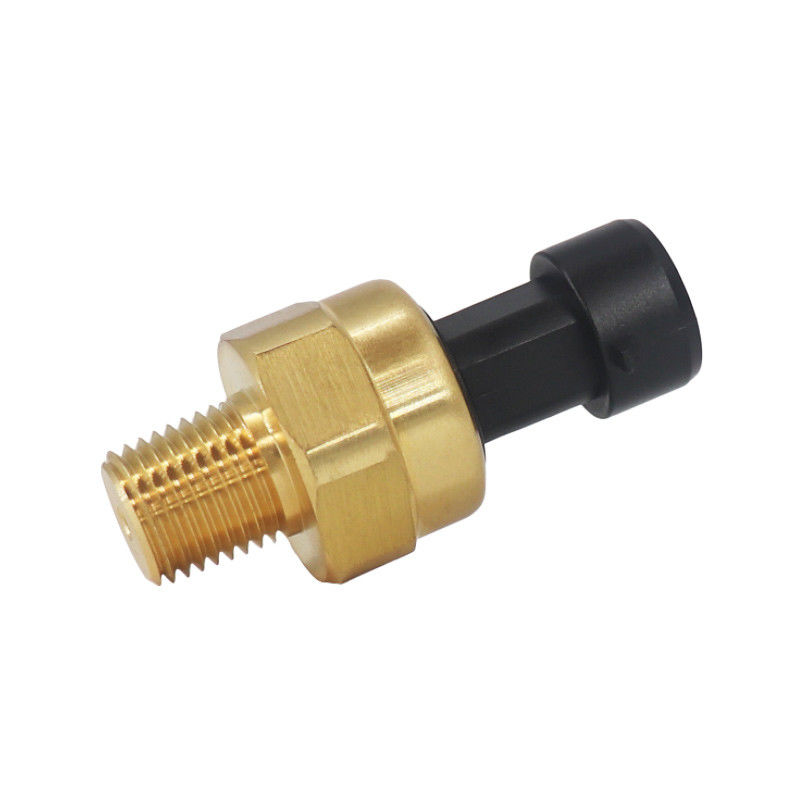

Brass Ceramic Capacitance Pressure Sensor With 0.5-4.5 VDC Output Signal

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.


Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection packard
Mechanical connection 1/4 NPT
Housing material Brass
