Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer

Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer

ASIC hvac pressure sensor

Brass Housing hvac pressure sensor

ASIC hvac pressure transducer

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

ISO, CE

Model numarası:

Wnk83ma

Bize Ulaşın
Teklif Et
Product Details
Kesinlik:
%1 FS
Çıkış:
0,5-4,5v
Basınç aralığı:
0-10Bar, 0-20Bar
Güç Kaynağı:
4.75-5.25VDC
çalışma sıcaklığı:
-20~70°C
Ölçülen medya:
Sıvı, Gaz, Buhar
Muhafaza malzemesi:
Pirinç
Adedi:
1 adet
Vurgulamak:

ASIC hvac pressure sensor

,

Brass Housing hvac pressure sensor

,

ASIC hvac pressure transducer

Payment & Shipping Terms
Min sipariş miktarı
1 Adet
Fiyat
negotiable
Ambalaj bilgileri
Standart ihracat karton kutu veya ihtiyacınıza göre
Teslim süresi
5-7 iş günü
Ödeme koşulları
L/C, T/T, Western Union, MoneyGram
Yetenek temini
Ayda 5000 parça/parça
Product Description

Low Cost Mini Brass Water Air Air Compressor HVAC Pressure Sensor Gauge

Description

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.



Parameter



Applicable media Liquid gas steam
Pressure range 0-10bar 0-20bar
Pressure measurement Gauge/ Sealing
Output 0.5-4.5V
Power supply 4.75-5.25V DC
Accuracy 1%fs
Work temperature -20-70C
Storage Temperature -40-110C
Electrical connection Cable outlet packard
Housing material Brass





Mechanical Dimension



Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 0
Display

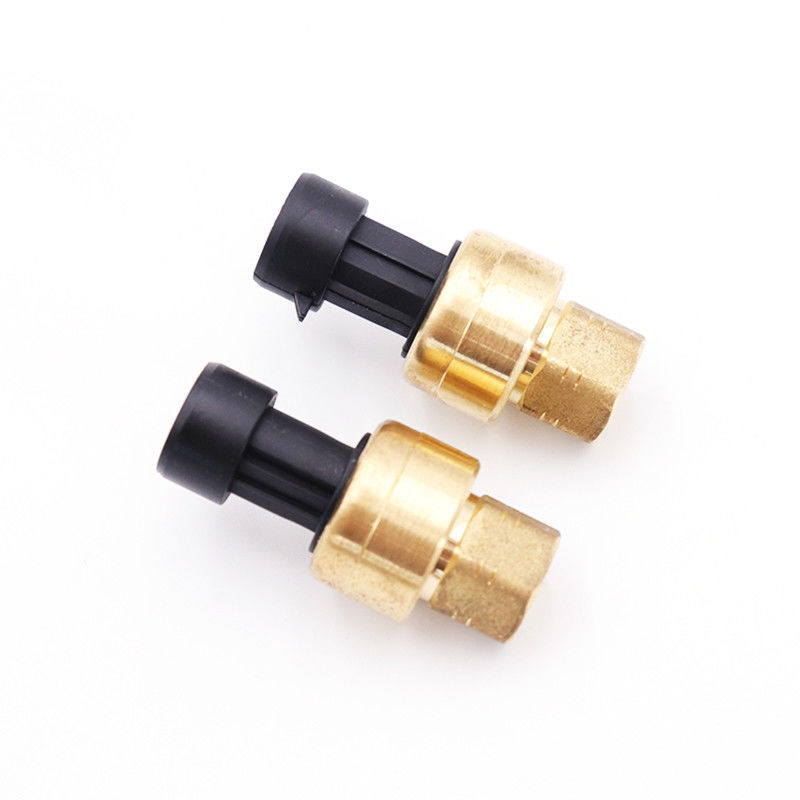

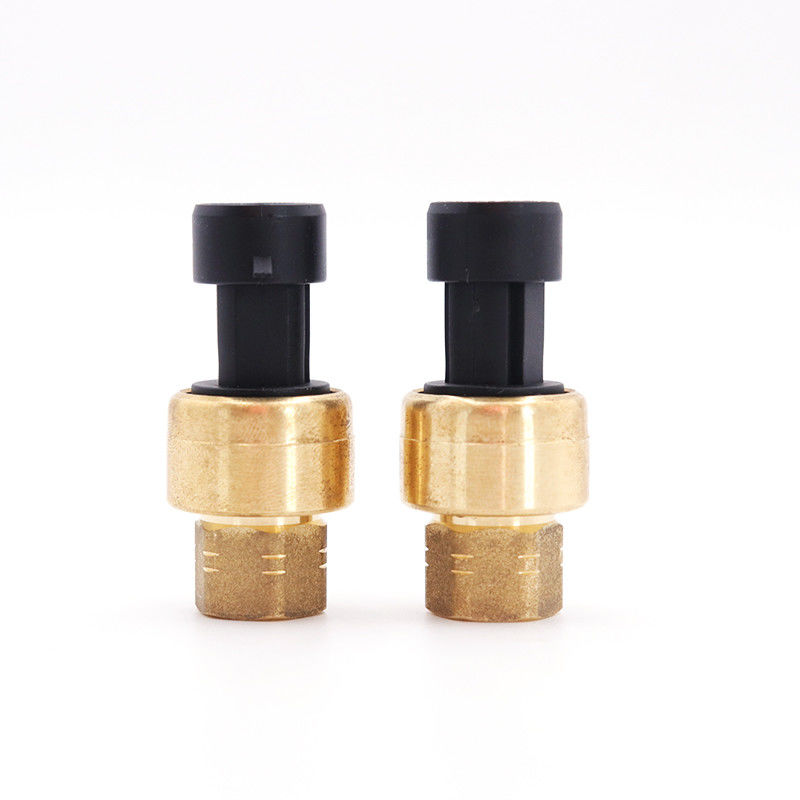

Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 1Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 2



Company Information



Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 3


Factory


Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 4




Exhibition


Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 5





Our Certificate
Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 6





Packing
Brass Housing Sealing ASIC HVAC Pressure Sensor Transducer 7

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
