Ceramic Capacitive 1MPa 5V Stainless Steel Pressure Sensor

Ceramic Capacitive 1MPa 5V Stainless Steel Pressure Sensor

5V Stainless Steel Pressure Sensor

1MPa Stainless Steel Pressure Sensor

SS Ceramic Capacitive Pressure Sensor

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE

Model numarası:

WNK84mA

Bize Ulaşın
Teklif Et
Product Details
Ölçülen medya:
Sıvı Gaz ve Buhar
Çıkış Sinyali:
0,5-4,5v
Ortam Sıcaklığı:
-20-70c
Elektrik bağlantısı:
Packard/Mini Din43650/Kablo Çıkışı/M12*4P
Kesinlik:
%1 FS
Basınç aralığı:
0-1000kPa,1MPa,10bar
Güç Kaynağı:
5V
Proses bağlantısı:
G1/4 Kablo çıkışı
Malzeme:
Paslanmaz çelik
Vurgulamak:

5V Stainless Steel Pressure Sensor

,

1MPa Stainless Steel Pressure Sensor

,

SS Ceramic Capacitive Pressure Sensor

Payment & Shipping Terms
Min sipariş miktarı
1 Adet
Fiyat
negotiable
Ambalaj bilgileri
Nötr karton paketleme veya gereksiniminize göre.
Teslim süresi
5-8 İş Günü
Ödeme koşulları
D/P, T/T, Western Union, Paypal
Yetenek temini
5000 Adet/Ay
Product Description

5V Power Supply 0.5-4.5v Output Stainless Steel Pressure Sensor For Liquid Gas Steam



Product Spec



Applicable Media Liquid Gas
Pressure Range 0-10Bar 0-1000Kpa
Cell Ceramic Capacitive Pressure Sensor
Pressure Measurement Gauge Pressure Sealing Pressure
Output  0.5-4.5v
Power Supply 5V
Accuracy 1%FS
Working Temperature -20-70C
Ambient Temperature -40-110C
Temperature Drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature Drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical Connection Cable outlet
Mechanical Connection 1/4 NPT
Housing Material Stainless Steel





Product Show

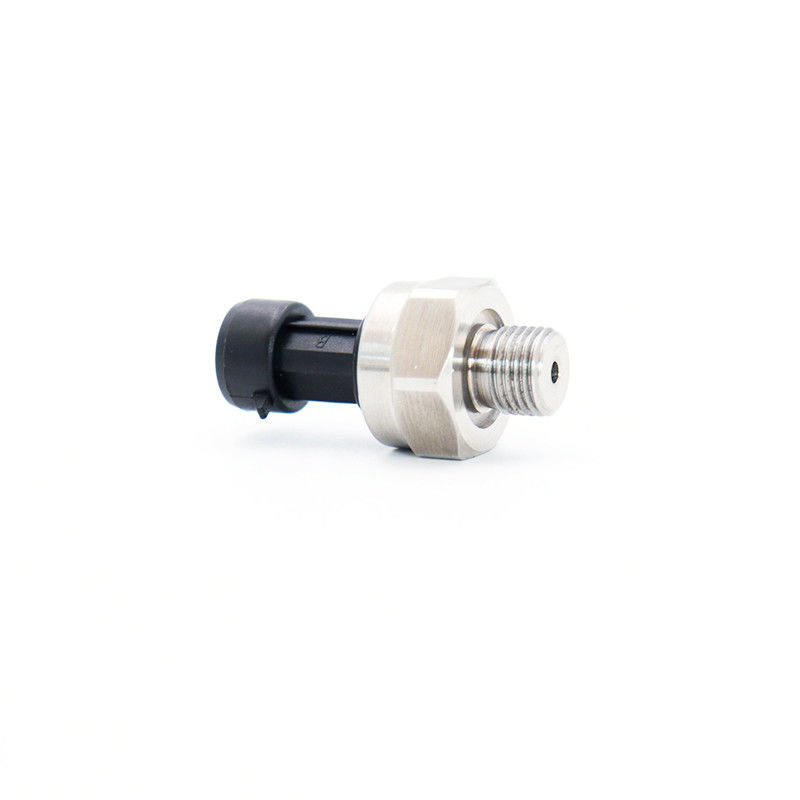

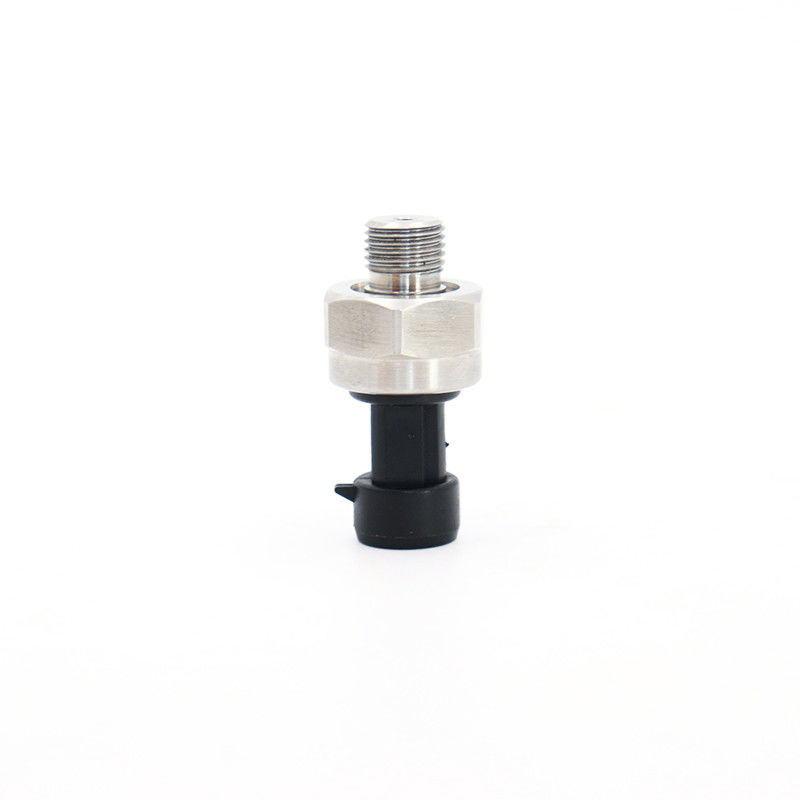

Ceramic Capacitive 1MPa 5V Stainless Steel Pressure Sensor 0Ceramic Capacitive 1MPa 5V Stainless Steel Pressure Sensor 1





Company Information



Ceramic Capacitive 1MPa 5V Stainless Steel Pressure Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
