0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam

0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam

4.5v Ceramic Pressure Sensor

Brass Ceramic Pressure Sensor

1/4 NPT Ceramic Pressure Sensor

Menşe yeri:

Çin (Anakara)

Marka adı:

WNK

Sertifika:

CE

Model numarası:

Wnk83ma

Bize Ulaşın
Teklif Et
Product Details
Kesinlik:
% 1
Ölçülen medya:
Sıvı, gaz ve buhar
Basınç aralığı:
0-1000kPa
Çıkış Sinyali:
0.5-4.5 VDC
Güç Kaynağı:
4.75-5.25 VDC
Malzeme:
Pirinç
Proses bağlantısı:
1/4 NPT, G1/4
Elektrik bağlantısı:
Park Alanı, Kablo Çıkışı
Maksimum Akım:
15mA
Vurgulamak:

4.5v Ceramic Pressure Sensor

,

Brass Ceramic Pressure Sensor

,

1/4 NPT Ceramic Pressure Sensor

Payment & Shipping Terms
Min sipariş miktarı
1 adet
Fiyat
negotiable
Ambalaj bilgileri
standart ihracat karton kutu
Teslim süresi
5-8 iş günü
Ödeme koşulları
Banka havalesi, Western Union
Yetenek temini
5000+Adet+Aylık
Product Description

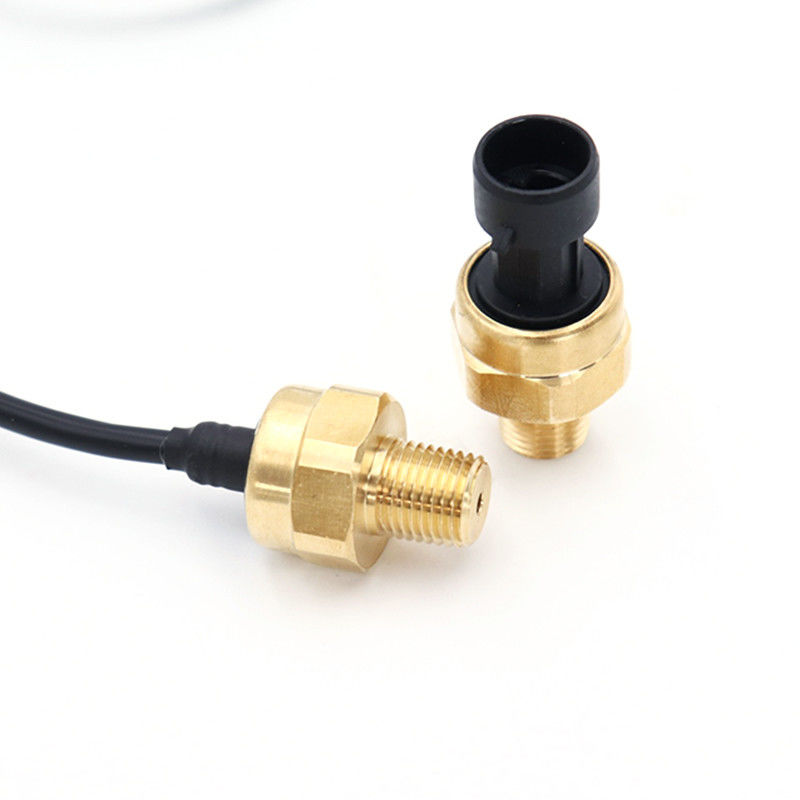

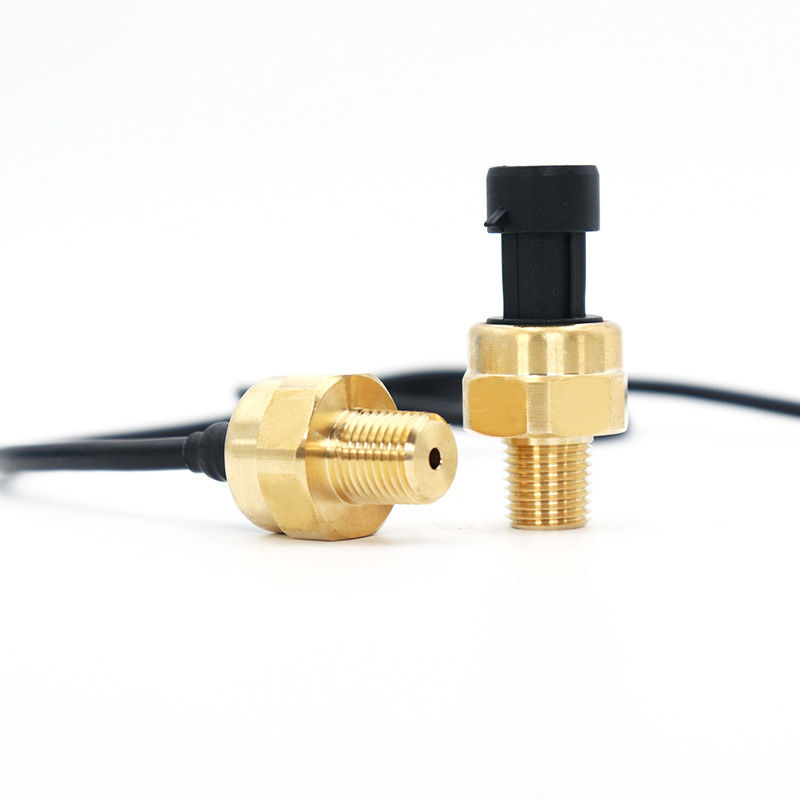

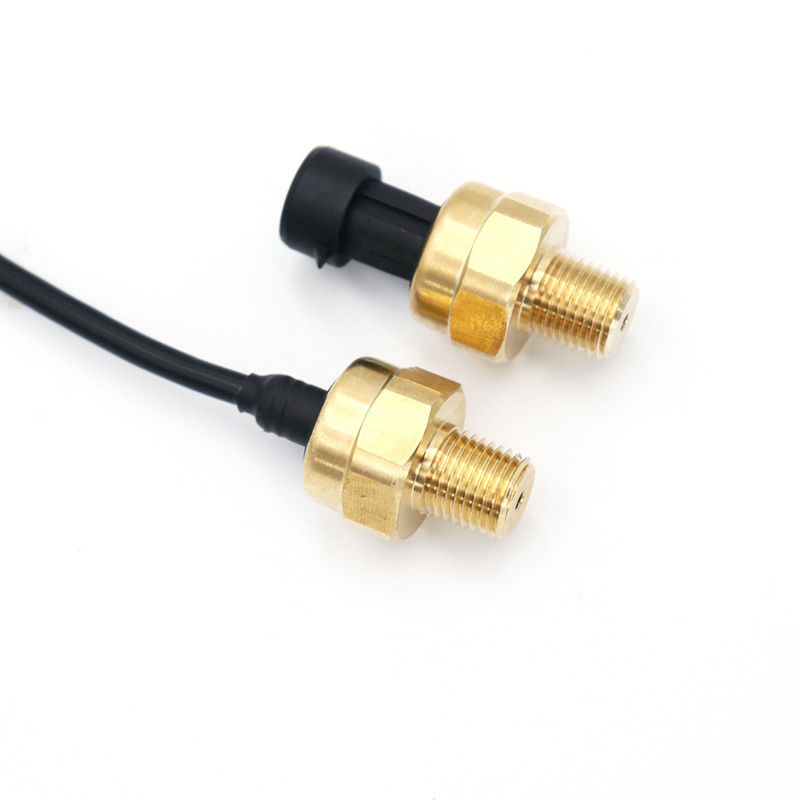

0.5-4.5v Output Ceramic Pressure Sensor For Liquid Gas Steam

Product Description

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Product Parameter


Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard
Mechanical connection 1/4 NPT
Housing material Brass

0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam 0






Company Information


0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam 1

Factory


0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam 2

Exhibition


0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam 3

Our Certificate


0.5-4.5V Brass Ceramic Pressure Sensor For Liquid Gas Steam 4

FAQ


Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
