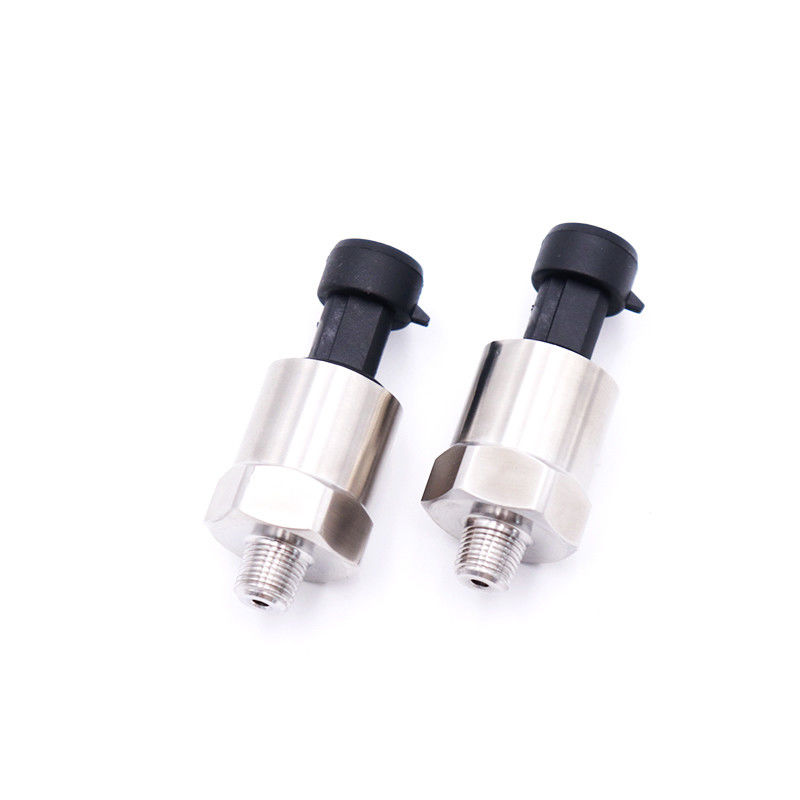

Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor

Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor

SS304 IOT Pressure Sensor

Oil Gas IOT Pressure Sensor

50MPa IOT Pressure Sensor

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

CE, SGS, ISO9001

Model numarası:

Wnk80ma

Bize Ulaşın
Teklif Et
Product Details
Basınç aralığı:
0-70mpa
Çıkış:
I2C, 0,5-4,5V, 4-20ma ve Özelleştirme
Yanıt Süresi:
≥1ms
Aşırı yük basıncı:
3-5 kez
Sensör Tipi:
IOT Basınç Sensörü
Çalışma Sıcaklığı:
-40 -135 ° C
Garanti:
12 Ay
Giriş Koruması:
IP67
Kesinlik:
% 1
Tazminat sıcaklığı:
-20 -70°C
Muhafaza malzemesi:
paslanmaz çelik 304
Vurgulamak:

SS304 IOT Pressure Sensor

,

Oil Gas IOT Pressure Sensor

,

50MPa IOT Pressure Sensor

Payment & Shipping Terms
Min sipariş miktarı
1 Adet
Fiyat
negotiable
Ambalaj bilgileri
Denize Uygun Ambalaj veya Havaya Uygun Ambalaj
Ödeme koşulları
D/A, L/C, T/T, Western Union, Moneygram
Yetenek temini
Aylık 5000 Adet/Adet Basınç Transmitteri
Product Description

4-20ma Pressure Sensor Ceramic Pressure Sensor For Water Oil Gas

Product Description



WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear,shock resistance and vibration resistance.Its anti-overload capacity is over 10 times of the range,completely solved poor overload in samll range of normal sensors,its most outstanding characteristic is the positive and negative gauge pressure function.As high output and wide range of its core ceramic capacitive sensor,WNK80MA is especially suitable for harsh industrial environment pressure measurement.

Product Parameters



Applicable media Liquid, gas and steam
Pressure range 0-20kPa~50MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, absolute pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65




Electrical connection:

Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor 0


Application:

WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

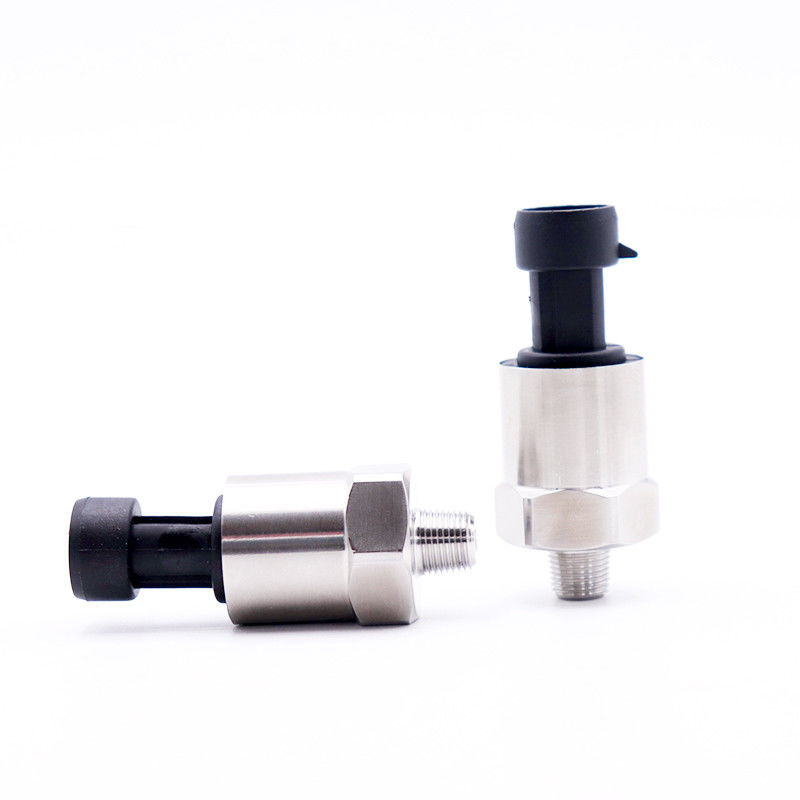

Product Show



Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor 1Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor 2

Company Information

Capacitive 50MPa Oil Gas SS304 IOT Pressure Sensor 3

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
