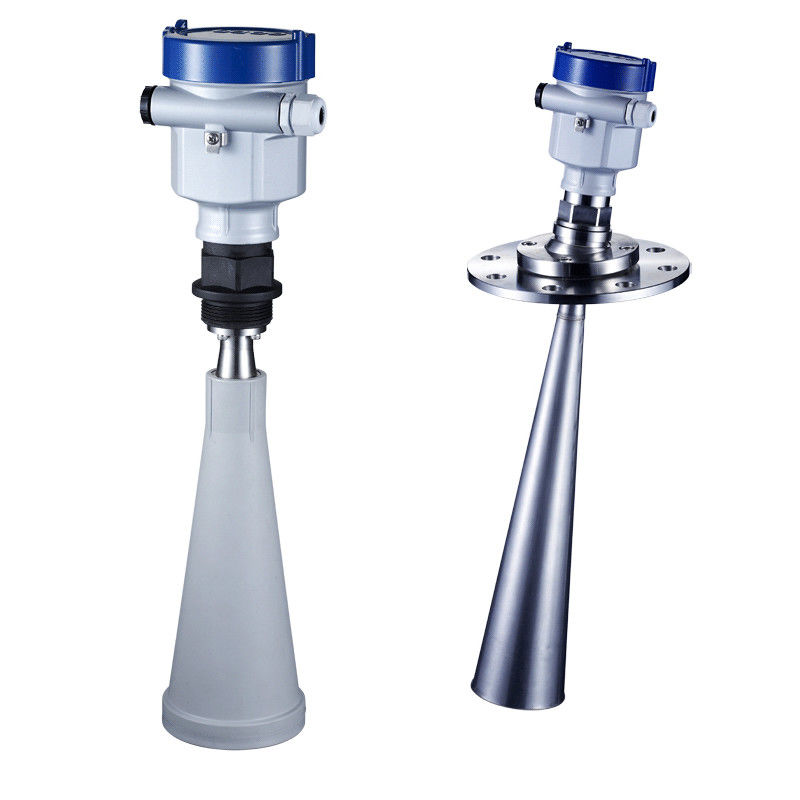

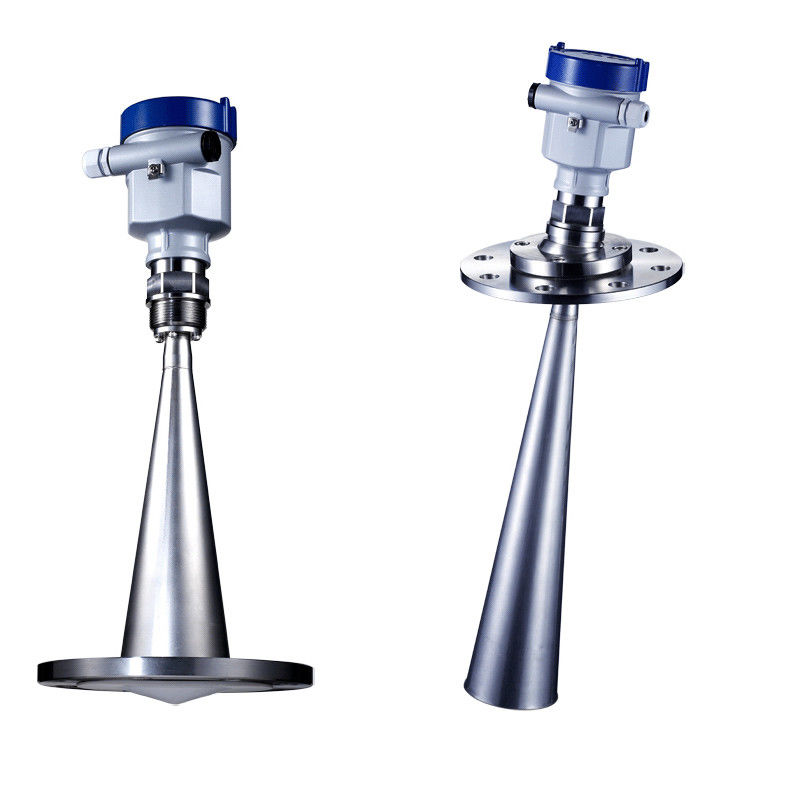

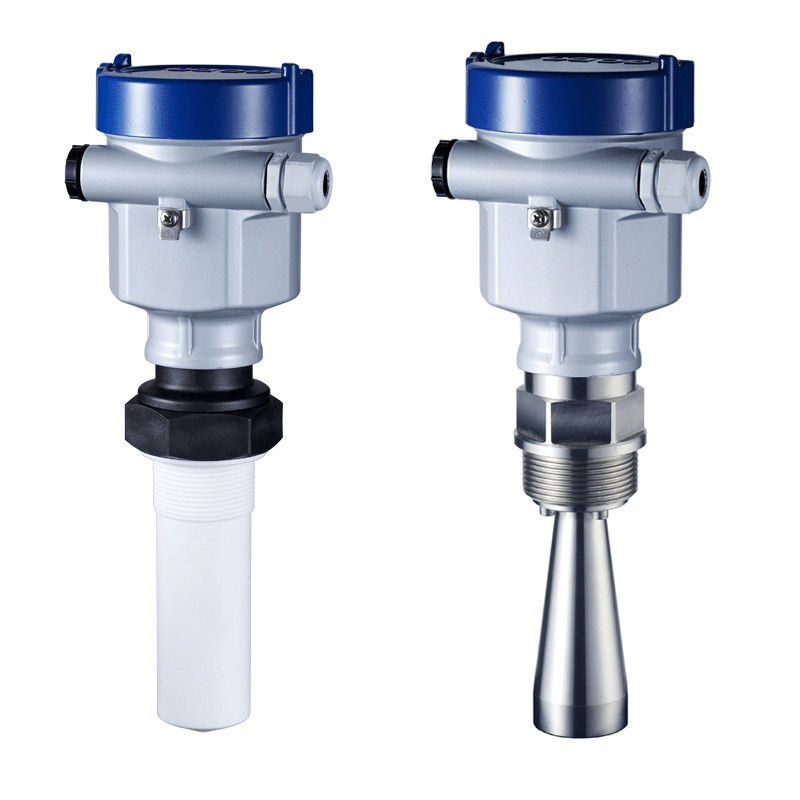

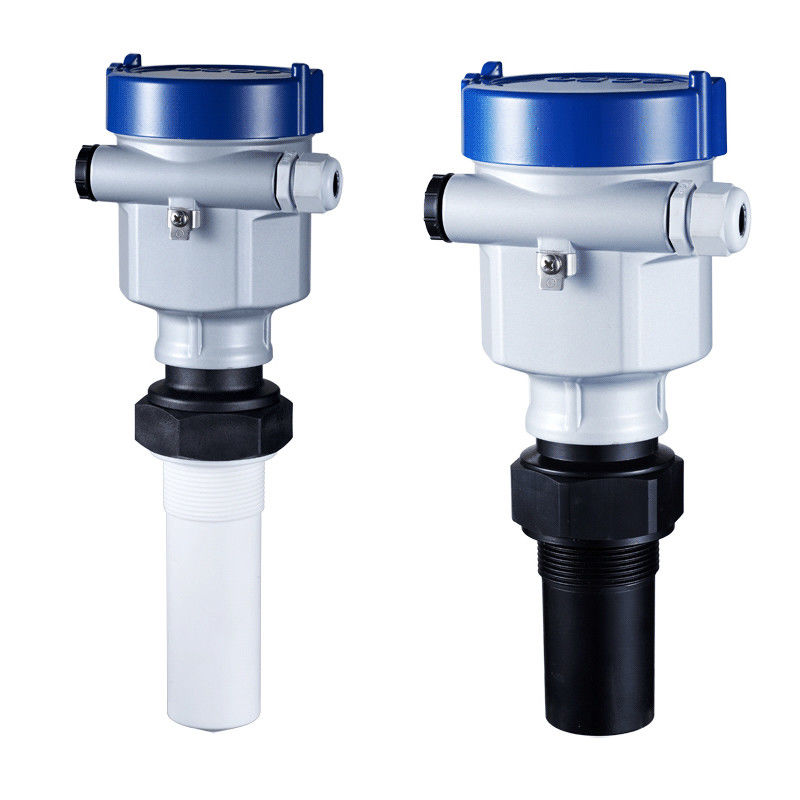

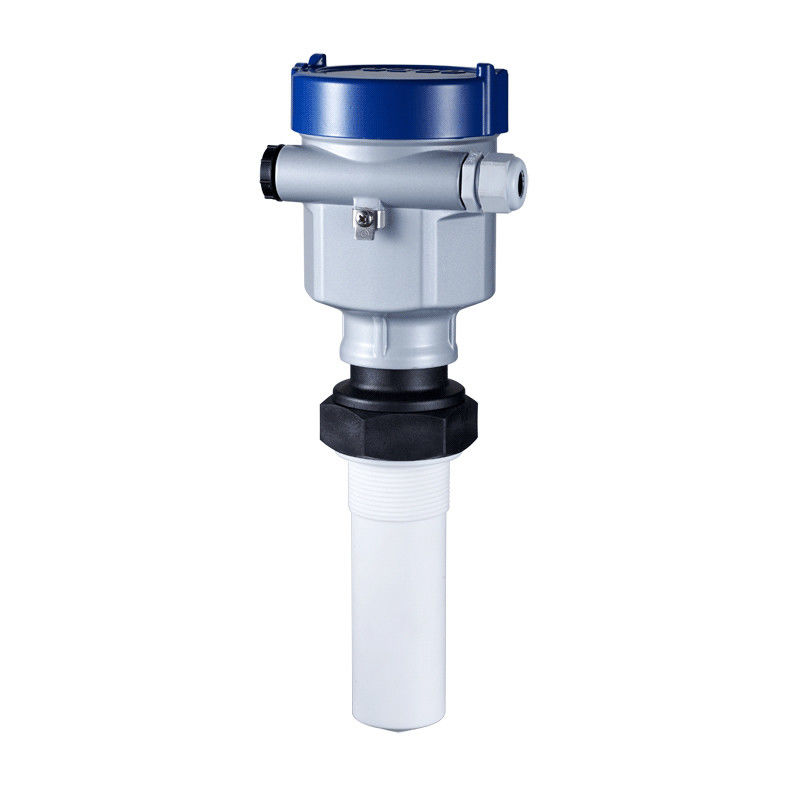

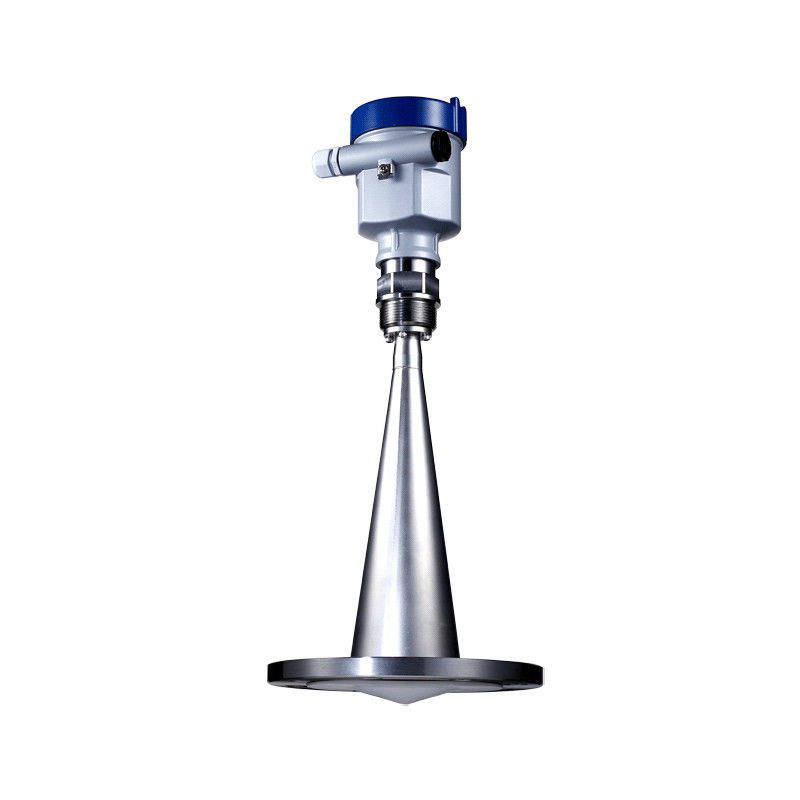

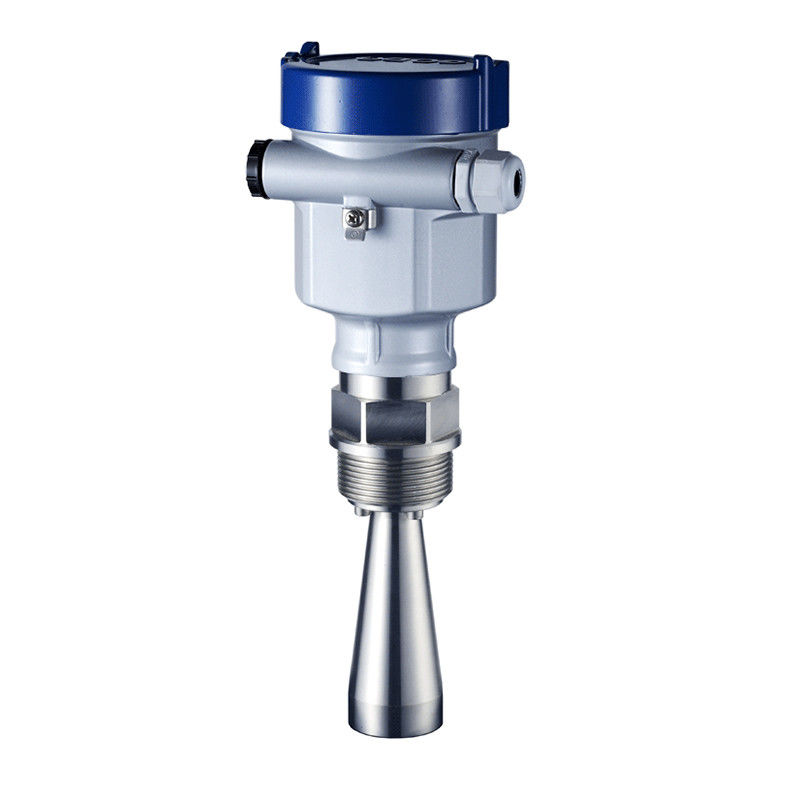

Name: High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKGDRD
Price: 800 USD
Availability: InStock

Evde > Ürünler > Submersible Level Sensor >

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

Menşe yeri:

Çin

Marka adı:

WNK

Model numarası:

WNKGDRD

Bize Ulaşın

Teklif Et

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Product Details

Başvuru:

Tank

Kesinlik:

±15mm

Tedbir aralığı:

70m

İşlem baskısı:

-0.1~4MPa

Sıklık:

26GHz

Proses sıcaklığı:

-40~400°C

Çıkış:

4-20mA/HART

Güç Kaynağı:

2 telli(DC 24V),4 telli(DC24V/AC220V)

LCD:

İsteğe bağlı

Vurgulamak:

stainless steel level sensor

liquid level sensor

26GHz Submersible Level Sensor

Payment & Shipping Terms

Min sipariş miktarı

1 Takım

Fiyat

USD800 per set

Ambalaj bilgileri

karton

Teslim süresi

5-8 iş günü

Ödeme koşulları

T/T, Western Union, PayPal, Kredi Kartı

Yetenek temini

Aylık 200 Set/Set Yüksek Doğruluklu 26GHz Radar Seviyesi Verici Ölçer

IP68 Stainless steel Dirty Water Submersible Level Sensor

En İyi Fiyatı Alın

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

En İyi Fiyatı Alın

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

En İyi Fiyatı Alın

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

High Accuracy 26GHz Tank Radar Level Transmitter Meter Gauge For Industrial Field

Principle:

The antenna of radar level instrument transmits a very narrow microwave pulse which propagates at the speed of light in space.

When meeting the dielectric surface to be measured, part of its energy is reflected and received by the same antenna. The time interval of transmitting and receiving pulses is proportional to the distance between antenna and dielectric surface to be measured, and therefore the distance between antenna and dielectric surface to be measured can be calculated.

Features:

-Small beam angle (min 5º), centralized energy and stronger antijamming capability which have significantly improved the measurment accuracy and reliability;

-Small antenna size which facilitates installation and addition of protective devices for antenna such as a dust-proof cover;

-Smaller unmeasurable zone which can help to obtain good results for measuing small tanks;

-Shorter wavelength which is more suitable for level measurement of small particulate matters.

Company Introduction:

FAQ:

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient

pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
