Name: Smart drinking water pressure sensor I2C output low consumption transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 53.00 USD
Availability: InStock

Evde > Ürünler > IOT Pressure Sensor >

Smart drinking water pressure sensor I2C output low consumption transducer

i2c pressure sensor

oem pressure sensor

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE&UL

Model numarası:

Wnk80ma

Bize Ulaşın

Teklif Et

Smart drinking water pressure sensor I2C output low consumption transducer

Product Details

Çıkış:

24VDC/12VDC/5VDC/3,3V

Basınç aralığı:

0~15 MPa

Ölçülen medya:

Sıvı, gaz ve buhar

Elektrik bağlantısı:

Packard, M12, DIN43650, Kablo

Muhafaza malzemesi:

Alüminyum/Pirinç/SST 304

Anahtar kelimeler:

Basınç Sensörü

IP oranı:

IP65

Proses bağlantısı:

G1/2, G1/4, M2x1.5NPT1/4, özelleştirme

Vurgulamak:

i2c pressure sensor

oem pressure sensor

Payment & Shipping Terms

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Standart Ambalaj veya ihtiyacınıza göre

Ödeme koşulları

T/T, PayPal, Batı Birliği

Yetenek temini

1000

Zorlu Koşullarda POE Yağ Basıncının Uzun Süreli İzlenmesi İçin Tasarlanmış 40 ila 85 Derece Santigrat IOT Basınç Sensörü

En İyi Fiyatı Alın

Gaz Sıvı Basınç Orta IOT Basınç Algılayıcısı Difüzyon Silikon İletici Tipi 4-20ma Çıktı Ve Özelleştirme Seçenekleri

En İyi Fiyatı Alın

Giriş 47552VDC Hava Basıncı Sensörü OEM Çeşitli Endüstriyel Denetleyiciler ve Veri Alım Sistemleri ile Uyumludur

En İyi Fiyatı Alın

Çıktı 4-20ma ve özelleştirme IOT Basınç Sensörü Yılda % 0.2 FS altında uzun vadeli istikrar sunar OEM Tasarımı

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Smart drinking water pressure sensor I2C output low consumption transducer

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range00	0-15Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

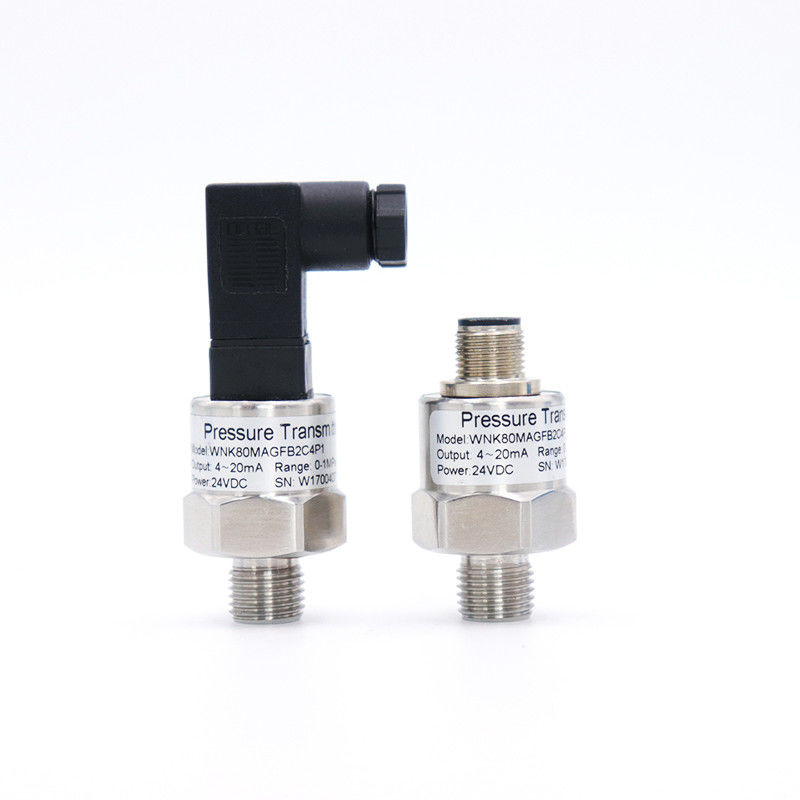

Smart drinking water pressure sensor I2C output low consumption transducer 0

Application in samrt water system:

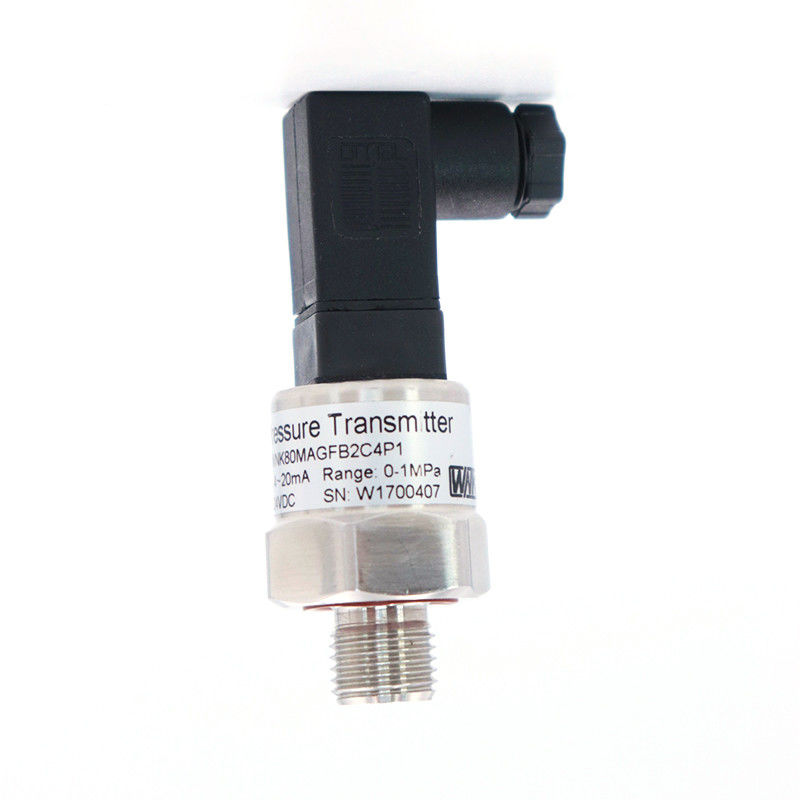

Smart drinking water pressure sensor I2C output low consumption transducer 1

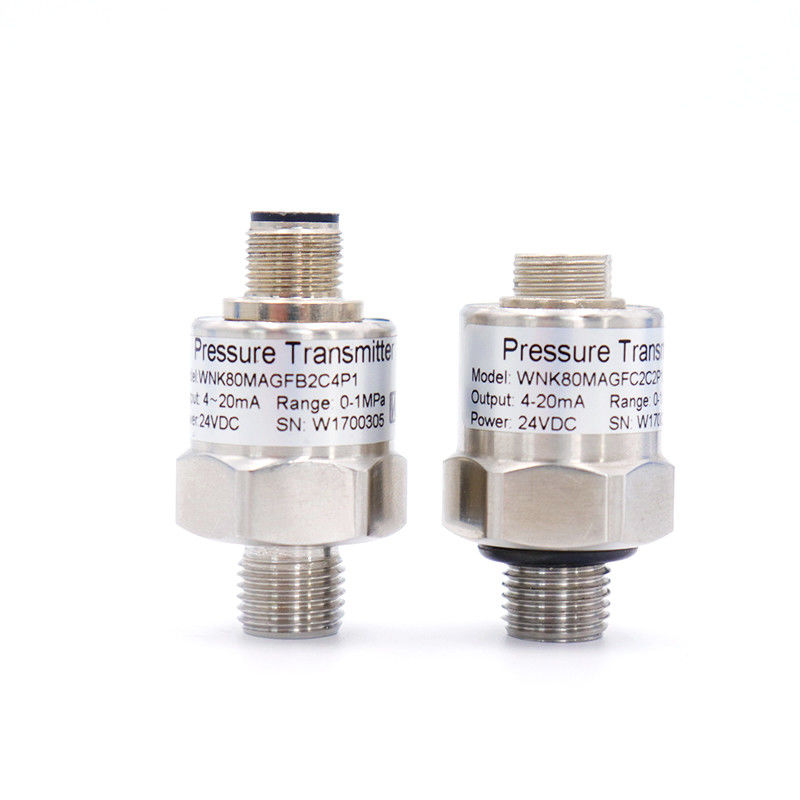

Smart drinking water pressure sensor I2C output low consumption transducer 2

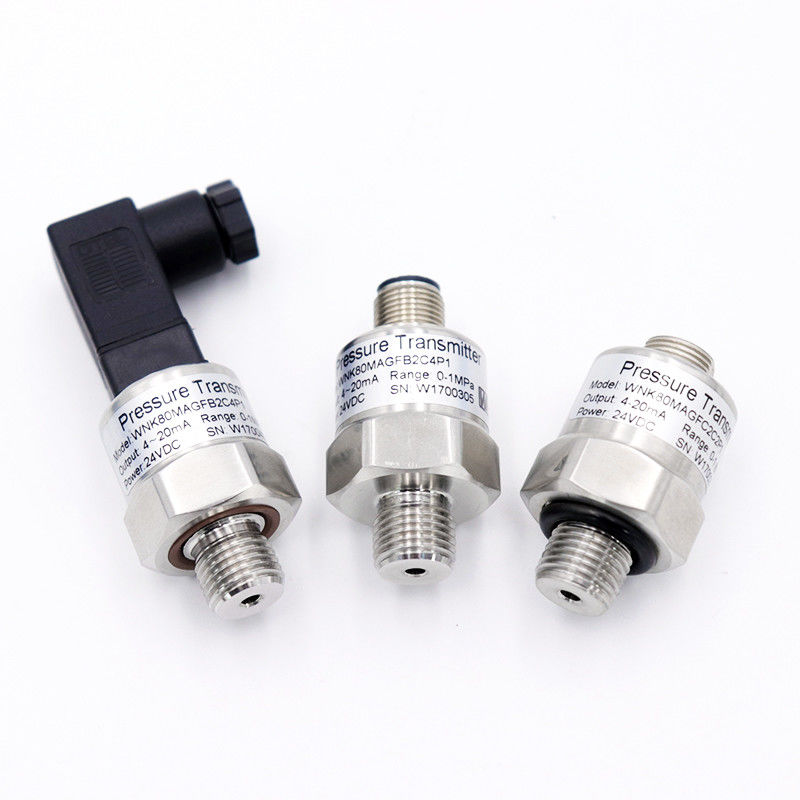

Smart drinking water pressure sensor I2C output low consumption transducer 3

Company introduction:

Smart drinking water pressure sensor I2C output low consumption transducer 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
