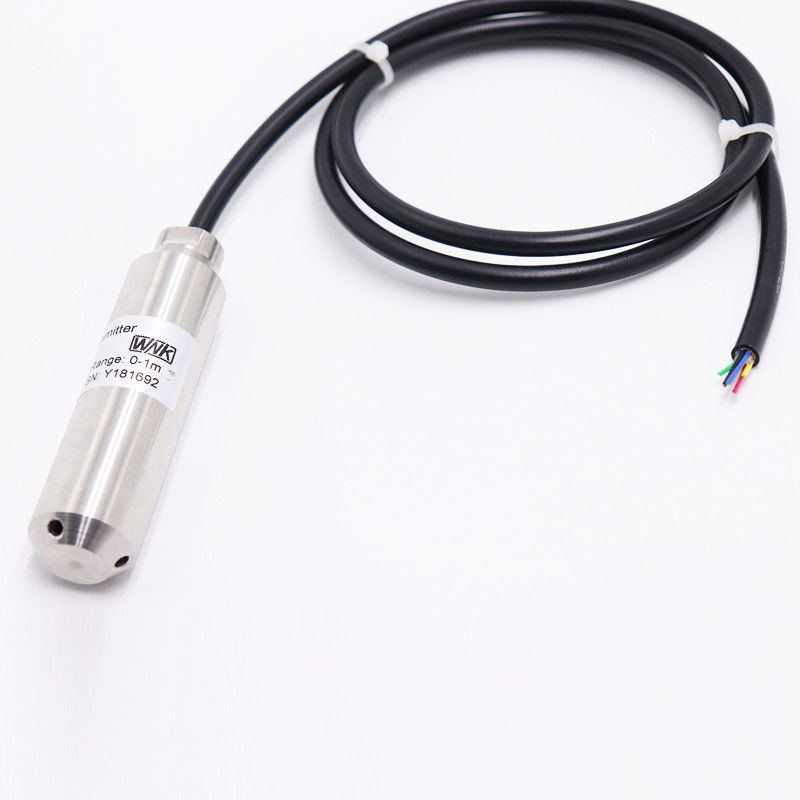

4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision

stainless steel level sensor

liquid level sensor

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

Model numarası:

WNK8010

Bize Ulaşın

Teklif Et

4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision

Product Details

Analog:

4-20mA, 1-5V, 0,5-4,5, 0-5V, 0-10V, I2C

Dijital:

Hart, RS485 vb.

Tedbir aralığı:

0-1 ~ 200mh2o

Medya:

Sıvı, su

Kesinlik:

±%0,25 FS/yıl, ±%0,5 FS/yıl

Muhafaza malzemesi:

Paslanmaz çelik

Güç Kaynağı:

24V/12V/5V/3.3V

Koruma:

IP68

Vurgulamak:

stainless steel level sensor

liquid level sensor

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Ambalaj bilgileri

standart ihracat paketi

Teslim süresi

5-8 iş günü

Yetenek temini

Haftada 1000 adet.

IP68 Stainless steel Dirty Water Submersible Level Sensor

En İyi Fiyatı Alın

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

En İyi Fiyatı Alın

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

En İyi Fiyatı Alın

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

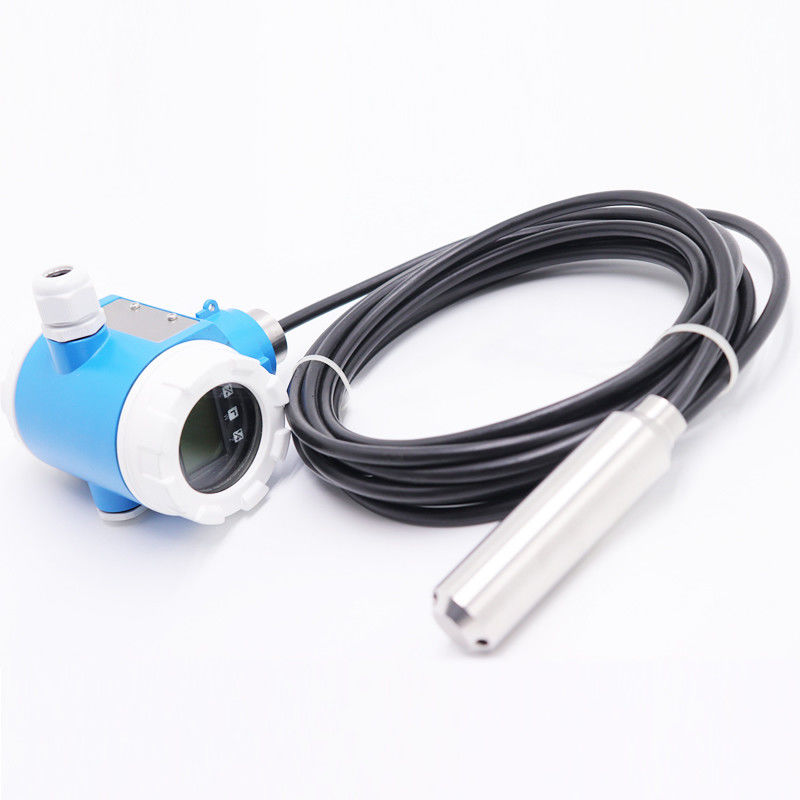

4-20mA Submersible Water Level Sensor/Level Transducer with Display

Name: 4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010
Price: 417.00 USD
Availability: InStock

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.

2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.

Product Specification

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH₂O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Product Dimension & Installation

Ordering sheet

Packaging & Shipping

4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision 2

Company Information

4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision 3

4 - 20mA Submersible Level Transmitter Sea Water Level Sensor High Precision 4

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.
