Name: Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK4S
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display

smart type pressure transmitter

digital pressure transmitter

Menşe yeri:

ANHUI, ÇİN

Marka adı:

WNK

Model numarası:

WNK4S

Bize Ulaşın

Teklif Et

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display

Product Details

Ürün Adı:

WNK4S basınç vericisi

Basınç ölçümü:

Sıvı, gaz ve buhar

Basınç aralığı:

-100kpa ~ 70mpa

Kesinlik:

%0,2

Çıkış:

4~20mA, Modbus

Güç Kaynağı:

10,5-55VDC 10,5-30VDC

mekanik bağlantı:

G1/2, G1/4, 1/2NPT vb.

Muhafaza malzemesi:

Alüminyum14

Koruma Derecesi:

IP66/67

Depolama Sıcaklığı:

LCD başlığı için -45 ila 85°C,-40 ila 80°C

Vurgulamak:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Min sipariş miktarı

1 Takım

Fiyat

negotiable

Ambalaj bilgileri

Koruma ile birlikte tek bir karton ambalajda her set

Teslim süresi

IP40

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

LCD başlığı için -45 ila 85°C,-40 ila 80°C

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

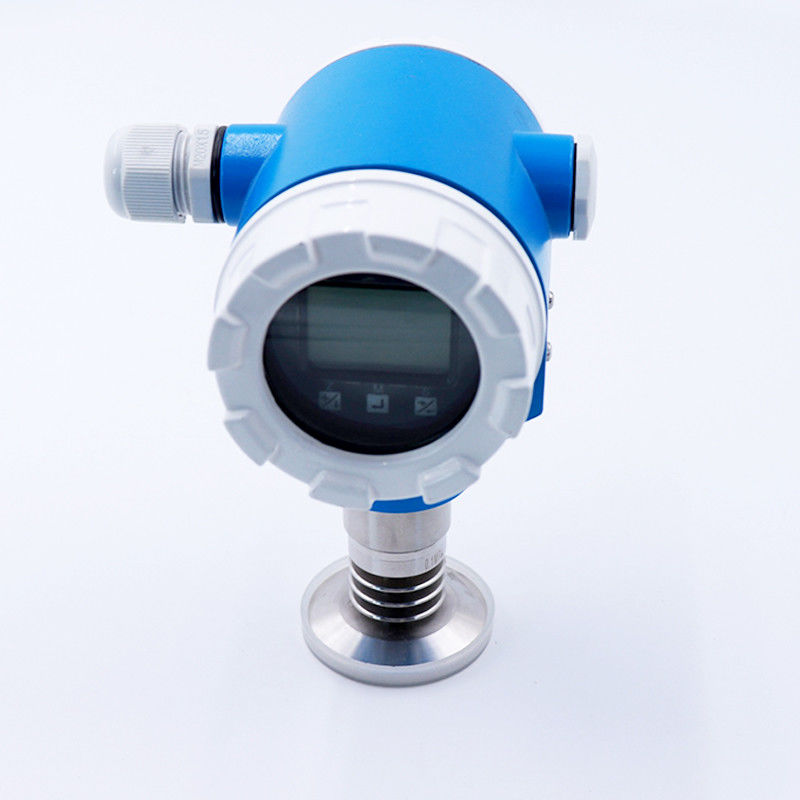

WNK4S Absolute Pressure Transmitter Liquid Explosion proof with Display

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

Product Description

WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.

Product Name	4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
Pressure measurment	liquid, gas and steam
Pressure range	-100kPa~70MPa
Accuracy	0.2%
Output	4~20mA, Modbus
Power supply	10.5-55V DC 10.5-30V DC
Mechanical connection	G1/2, G1/4, 1/2NPT etc
Housing material	Aluminum14
Ingress Protection	IP66/67
Ex-proof	ExiaII CT4/CT6, ExidIICT6
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display 2
