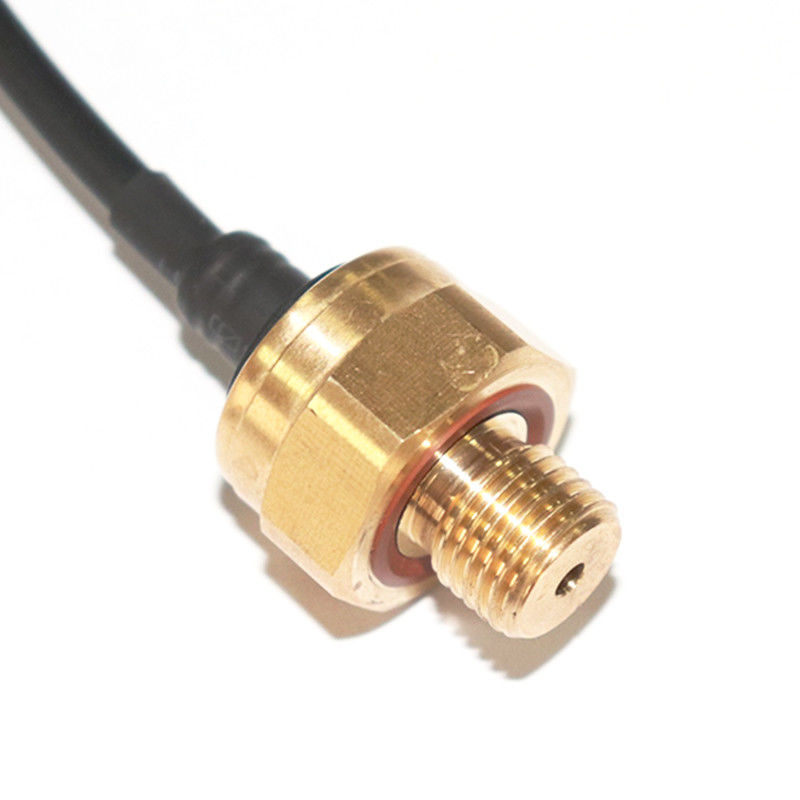

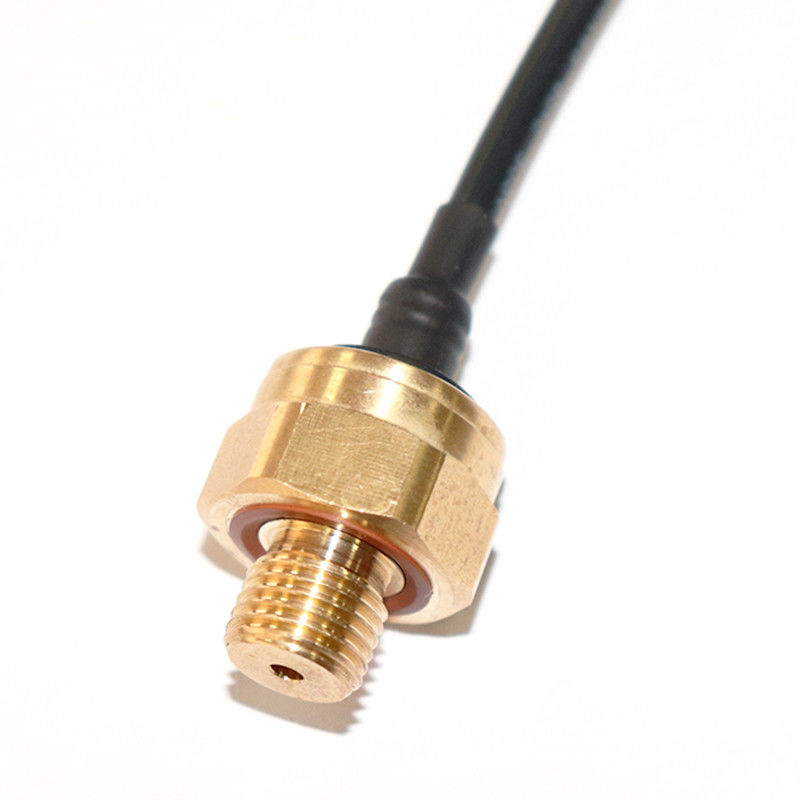

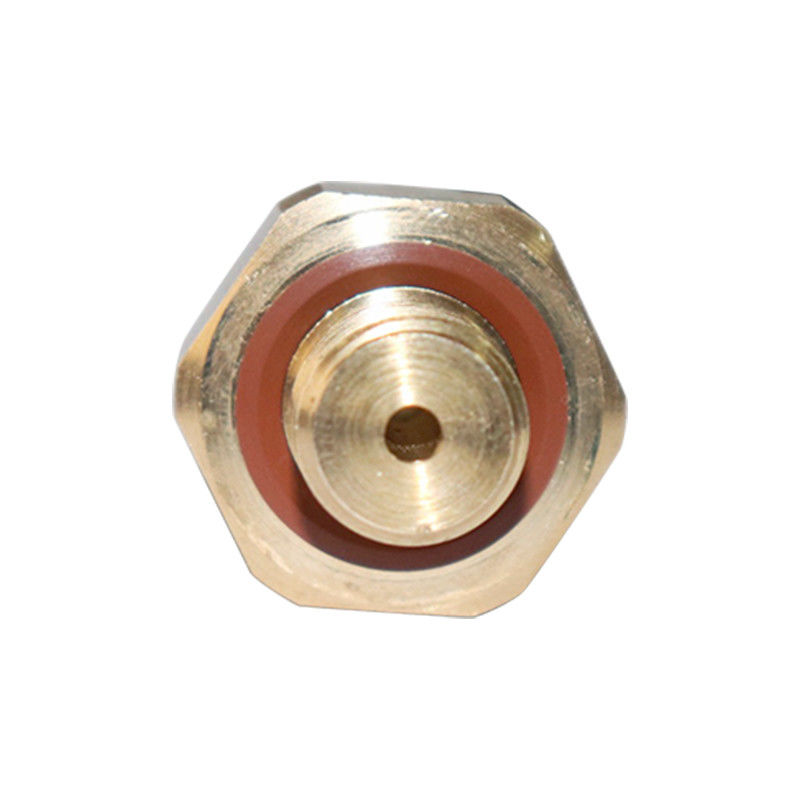

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

mini pressure sensor

air pressure transmitter

Menşe yeri:

Çin (Anakara)

Marka adı:

WNK

Sertifika:

CE

Model numarası:

Wnk83ma

Bize Ulaşın
Teklif Et
Product Details
Kesinlik:
% 1
Ölçülen medya:
Sıvı, gaz ve buhar
Basınç aralığı:
0-2000kPa
Çıkış Sinyali:
0.5-4.5 VDC
Güç Kaynağı:
4.75-5.25 VDC
Çalışma sıcaklıkları:
-20 ila 70 ℃
Malzeme:
Pirinç
Proses bağlantısı:
G1/4
Elektrik bağlantısı:
Kablo çıkışı
Özellik:
Korozyon önleyici, şok direnci
Vurgulamak:

mini pressure sensor

,

air pressure transmitter

Payment & Shipping Terms
Min sipariş miktarı
1 adet
Fiyat
negotiable
Ambalaj bilgileri
standart ihracat karton kutu
Teslim süresi
5-8 iş günü
Ödeme koşulları
Banka havalesi, Western Union
Yetenek temini
5000+Adet+Aylık
Product Description
Product Description

4.75-5.25 VDC Power supply G1/4 Cable outlet Pressure Sensor 0-2000kPa

As a brass practical pressure transmitter, WNK83mA G quarter cable outlet has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%. It can act on gas, water or liquid and has strong stability.


Applicable mediaLiquid, gas and steam
Pressure range0-2000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionCable outlet
Mechanical connectionG1/4
Housing materialBrass

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 0


0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 10-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 20-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 30-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 4


Company Information

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 5

Factory

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 6

Exhibition

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 7

Our Certificate

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance 8

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
