Name: Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNKSPS'ler
Price: 403.00 USD
Availability: InStock

Evde > Ürünler > Electronic Digital Pressure Switch >

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

pressure control switch

stainless steel pressure switch

Menşe yeri:

Çin

Marka adı:

WNK

Sertifika:

CE Rohs

Model numarası:

WNKSPS'ler

Bize Ulaşın

Teklif Et

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Product Details

Medya:

Sıvı, gaz ve buhar

Menzil:

-100KPa~60MPa

Çıkış:

4-20mA, 0-5V, 0-10V, Rs485

Kesinlik:

T/T (%30 depozito, teslimattan önce %70 bakiye)

Tedarik:

12-30V DC

Anahtar Türü:

Hayır/NC

Görüntülemek:

OLED

Vurgulamak:

pressure control switch

stainless steel pressure switch

Payment & Shipping Terms

Min sipariş miktarı

1 adet

Fiyat

negotiable

Ambalaj bilgileri

Standart İhracat Ambalajı

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T

Yetenek temini

Haftada 2000 Adet

316SS 700bar IP65 Electronic Digital Pressure Switch

En İyi Fiyatı Alın

Stainless Steel Pressure Switch with OLED Display with PNP Output

En İyi Fiyatı Alın

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

En İyi Fiyatı Alın

Gas Air Water Oil Electronic Digital Pressure Switch , Pressure Control Switch 0-600 Bar

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

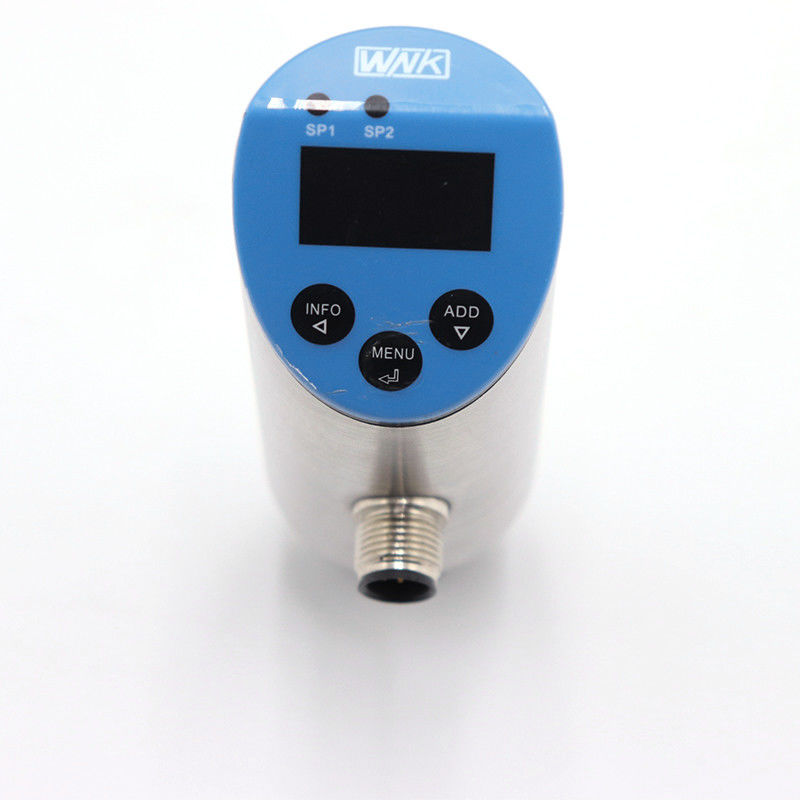

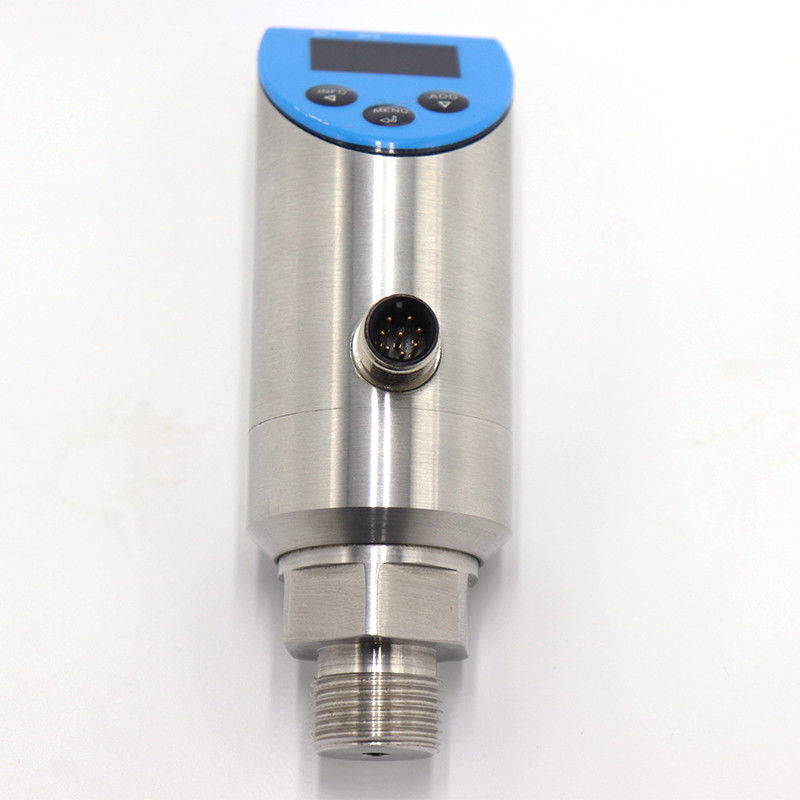

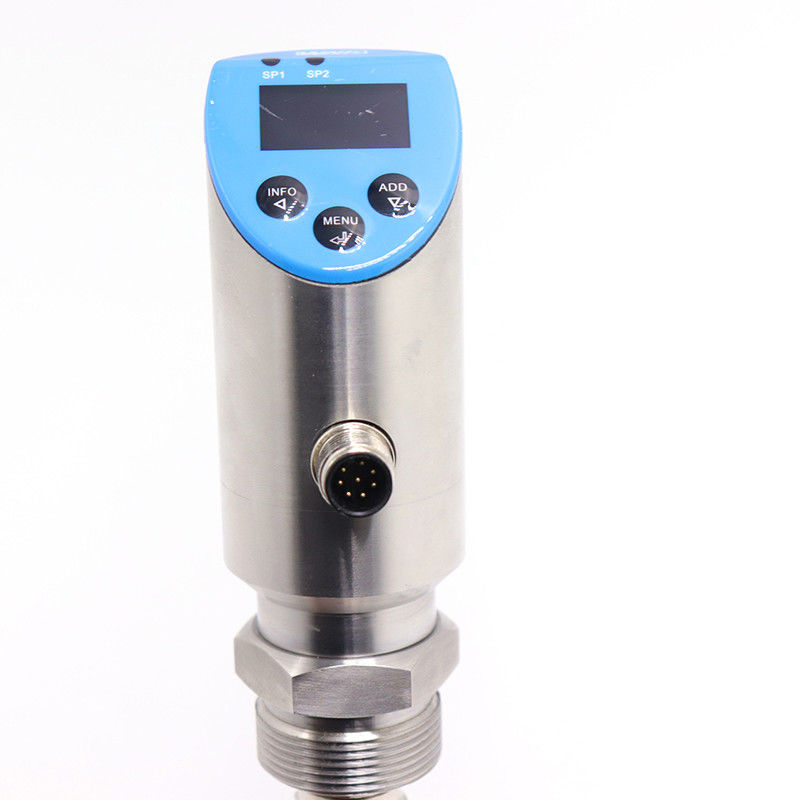

Electronic pressure switch transmitter and display in one device

Product Description

Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 0

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 1

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 2

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 3

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
