1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range

air pressure transmitter

mini pressure sensor

Menşe yeri:

Çin (Anakara)

Marka adı:

WNK

Sertifika:

CE

Model numarası:

Wnk83ma

Bize Ulaşın
Teklif Et
Product Details
Kesinlik:
% 1
Ölçülen medya:
Sıvı, gaz ve buhar
Basınç aralığı:
0-1000kPa
Çıkış Sinyali:
0.5-4.5 VDC
Güç Kaynağı:
4.75-5.25 VDC
Çalışma sıcaklıkları:
-20 ila 70 ℃
Malzeme:
Pirinç
Proses bağlantısı:
G1/4(M)
Elektrik bağlantısı:
Packard
Vurgulamak:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
Min sipariş miktarı
1 adet
Fiyat
negotiable
Ambalaj bilgileri
standart ihracat karton kutu
Teslim süresi
5-8 iş günü
Ödeme koşulları
Banka havalesi, Western Union
Yetenek temini
5000+Adet+Aylık
Product Description
Product Description

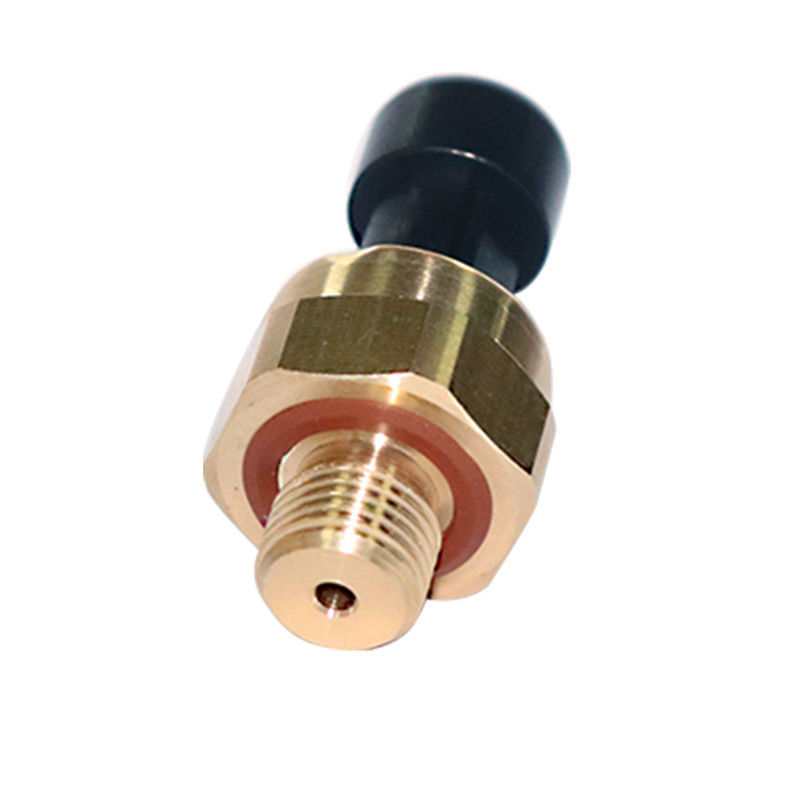

Low cost 1000 kPa G1/4(M) Packard Ceramic Capacitive Pressure Sensor

As a brass practical pressure transmitter, WNK83mA has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp, besides the voltage output is 0.5-4.5voltage DC.Its linearity,hysteresis,repetitiveness accuracy is 1%. It can act on gas, water or liquid and has strong stability.


Applicable media Liquid, gas and steam
Pressure range 0-1000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Packard
Mechanical connection G1/4(M)
Housing material Brass

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 0


1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 1




Company Information

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 2

Factory

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 3

Exhibition

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 4

Our Certificate

1000 KPa G1/4 Packard Ceramic Capacitive Pressure Sensor 0 - 1000kPa Pressure Range 5

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
