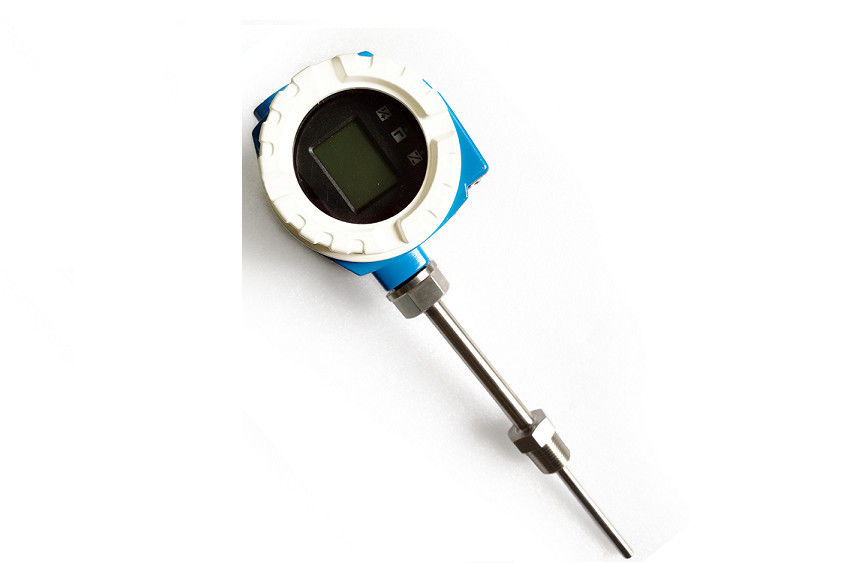

Name: LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK6T
Price: 403.00 USD
Availability: InStock

Evde > Ürünler > Smart Temperature Transmitter >

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

liquid temperature sensor

industrial temperature sensor

Menşe yeri:

HEFEI, ÇİN

Marka adı:

WNK

Sertifika:

ISO

Model numarası:

WNK6T

Bize Ulaşın

Teklif Et

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

Product Details

Sıcaklık Aralığı:

-270~800°C (PT100 termal direnç)

tip:

Sıcaklık Sensörü

Doğruluğu ölçün:

%0.2 FS

Malzeme:

Alüminyum gövde

Sinyal çıkışı:

4-20mA, RS485

Voltaj girişi:

24V (standart)

Eski:

Exia II CT4

Medyayı ölçün:

Sıvı, gaz ve buhar

Vurgulamak:

liquid temperature sensor

industrial temperature sensor

Payment & Shipping Terms

Min sipariş miktarı

Fiyat

negotiable

Ambalaj bilgileri

Standart İhracat Karton Ambalajı

Teslim süresi

3-8 İş Günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

44mm Diameter Hart RTD Liquid Gas Temperature Transmitter

En İyi Fiyatı Alın

Wireless Smart Temperature Transmitter For Timer Button Alarm Wake

En İyi Fiyatı Alın

CE Resolution 0.1C 18v 36V Temperature Humidity Sensor

En İyi Fiyatı Alın

Steam 24V PT100 Head Mounted Temperature Transmitter

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

WNK temperature transmitter is Cost-effective model. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.

Features

1. Long-term drift<0.1/year
2. Install easily, more flexiable
3. 4~20mA/RS485 output

4. Self-diagnostics function

Specifications

Measuring media	liquid, gas
Measuring range	-270~800 ℃ (PT100 thermal resistor)
	0~1300℃, (Thermocouple K)
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA, RS485
Digital Accuracy	±0.04℃, PT100 input
Internal cold end compensation error	＜0.25℃±0.1%/10℃
Temperature drift	±0.05%/10℃full-scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	＜0.005%/V full-scale range
Long term drift	＜0.1/year
Allowable temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85℃	-40...60℃	-40...95℃
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326
