Name: 4-20ma Hart Industrial Temperature Transmitter One Side Connected
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK-621
Price: 403.00 USD
Availability: InStock

Evde > Ürünler > Head Mounted Temperature Transmitter >

4-20ma Hart Industrial Temperature Transmitter One Side Connected

high accuracy temperature transmitter

field mounted temperature transmitter

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

ISO

Model numarası:

WNK-621

Bize Ulaşın

Teklif Et

4-20ma Hart Industrial Temperature Transmitter One Side Connected

Product Details

Sıcaklık:

50-500C

Temperleme doğruluğu:

0.1c

Çıkış Sinyali:

4-20mA 2 telli

Giriş türü:

PT100 PT1000 RTD

Güç Kaynağı:

24VDC

Görüntülemek:

HAYIR

Vurgulamak:

high accuracy temperature transmitter

field mounted temperature transmitter

Payment & Shipping Terms

Min sipariş miktarı

5 adet

Fiyat

negotiable

Ambalaj bilgileri

Standart ihracat karton ambalajı

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Head Mounted Industrial Temperature Transmitter OEM 4 - 20mA 24V Power Supply

En İyi Fiyatı Alın

4 - 20mA PT100 Head Mounted Temperature Transmitter 24V Power Supply Range

En İyi Fiyatı Alın

44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy

En İyi Fiyatı Alın

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

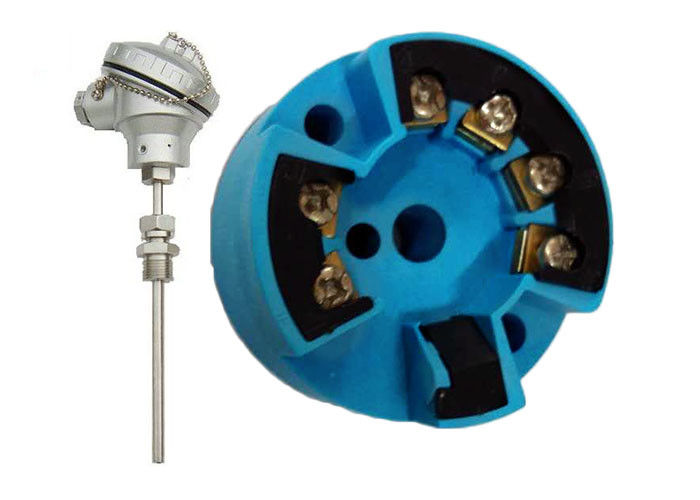

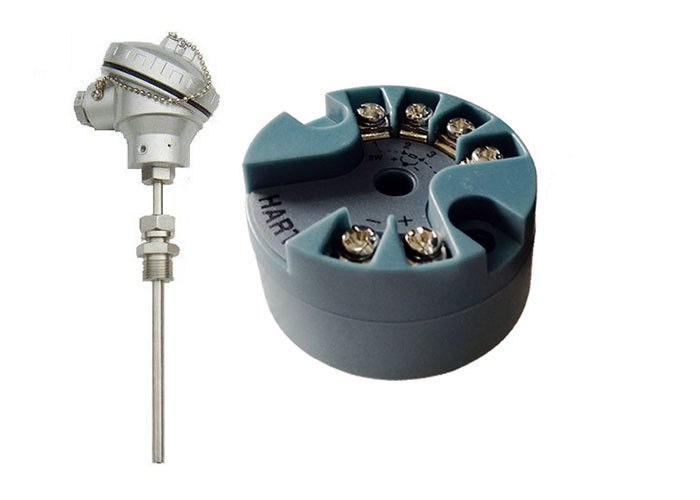

Industrial 4-20ma Hart Head Mounted Temperature Transmitter

Description

WNK temperature transmitter is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.

It specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.

Benefits

Measures temperature with a linear output signal
High accuracy across entire ambient temperature range
Reduces plant noise
Slim design, ideal for upgrade of installed PT100 probes with a 4-..20mA signal
Rugged design, fully potted electronic

Main Sensors Accuracy Parameters

Sensors type	Sensor range	Minimum range	Digit accuracy	D/A accuracy
2,3,4- wire thermal resistor
Cu50	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
Cu100	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
PT100	-200~850 ºC	10 ºC	±0.15 ºC	0.01%
PT1000	-200~850 ºC	10ºC	±0.1 ºC	0.01%
2,3,4- wire resistor
400Ω	0~400Ω	10Ω	0.01Ω	0.01%
4000Ω	-0~4000Ω	10Ω	0.01Ω	0.01%
Voltage
100mV	-10~100 mV	10 mV	0.01 mV	0.01%
1000mV	-100~1000mV	10 mV	0.01 mV	0.01%
Thermocouple
B type	150~1820ºC	25ºC	±1.0 ºC	0.01%
E type	-200~1000ºC	25ºC	±0.4 ºC	0.01%
J type	- 210~1200ºC	25ºC	±0.4ºC	0.01%
K type	-200~1372ºC	25ºC	±0.4ºC	0.01%
N type	-200~1300ºC	25ºC	±0.4ºC	0.01%
R type	0~1768ºC	25ºC	±0.8ºC	0.01%
S type	0~1768ºC	25ºC	±0.8ºC	0.01%
T type	-200~400ºC	25ºC	±0.4 ºC	0.01%

Sensor connection ports
