OLED Display Type Electronic Digital Temperature Switch And Transmitter

pt100 temperature transmitter

pump control switch

Menşe yeri:

Hefei, CN

Marka adı:

WNK

Sertifika:

SGS, ISO9001:2015

Model numarası:

STS

Bize Ulaşın

Teklif Et

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Product Details

Sıcaklık Aralığı:

-50...200C~260C

Giriş:

PT100, PT1000

Proses bağlantısı:

G 1/2 M12(5pin,8pin)

Analog çıkış:

4-20mA

dijital çıkış:

PNP, NPN

Analog Doğruluk:

%0.5 FS

Sızdırmazlık:

NBR

Vurgulamak:

pt100 temperature transmitter

pump control switch

Payment & Shipping Terms

Min sipariş miktarı

1 Adet

Fiyat

negotiable

Ambalaj bilgileri

Denize Uygun Ambalaj veya Havaya Uygun Ambalaj

Teslim süresi

5-8 İş Günü

Ödeme koşulları

Banka havalesi, Western Union

Yetenek temini

Ayda 5000PCS

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

En İyi Fiyatı Alın

OLED Display Type Electronic Digital Temperature Switch And Transmitter

En İyi Fiyatı Alın

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

En İyi Fiyatı Alın

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

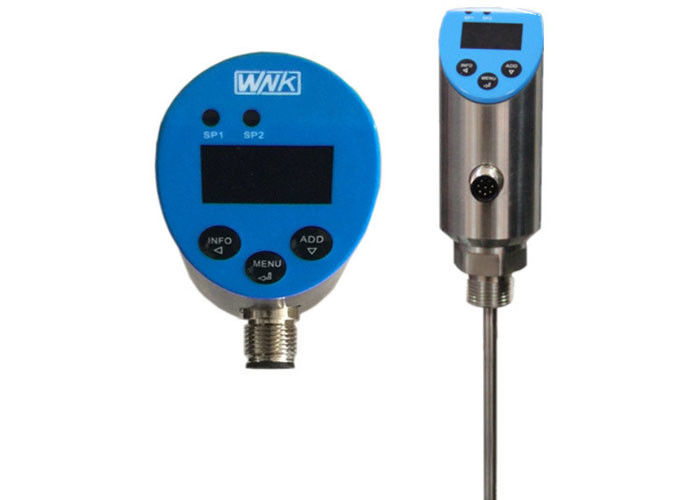

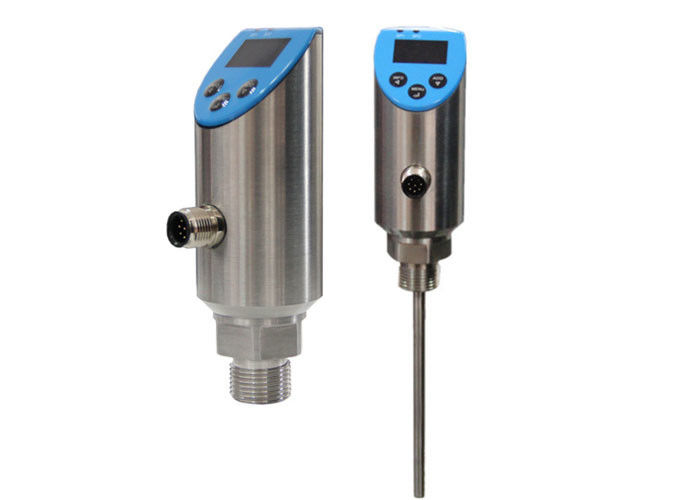

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Feature:

Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
Switching points settable
Analog output span settable
OLED self-luminous display
Display reversing 180°
Switching can be set normally open / normally closed
Housing with electrical connection against process connection rotatable 330°
Displaying temperature peak value and environment temperature
Parameters setting for Password protection
MODBUS protocol optional

Technical Data:

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Ordering sheet:

Tags：

2 wire temperature transmitter

pump control switch

pt100 temperature transmitter
