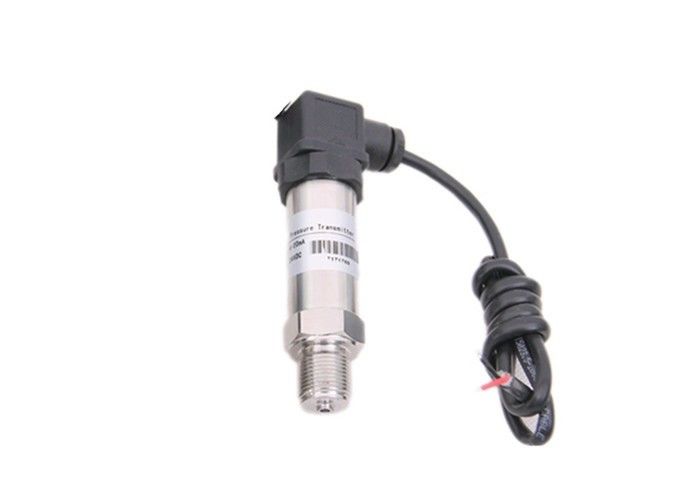

Name: IP65 Smart Pressure Transmitter with -100kpa ~ 60MPa Pressure Range
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

IP65 Smart Pressure Transmitter with -100kpa ~ 60MPa Pressure Range

smart type pressure transmitter

smart pressure sensor

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

ISO,Exia

Model numarası:

WNK805

Bize Ulaşın

Teklif Et

Product Details

Medyayı ölçün:

Sıvı, gaz ve buhar

Çıktı sinyalleri:

4~20mA, Modbus

Kesinlik:

%0,2

Basınç aralığı:

-100kpa ~ 70mpa

Koruma Sınıfı:

IP65

Muhafaza malzemesi:

Alüminyum

Güç Kaynağı:

10.5~30VDC

Başvuru:

Basınç ölçümü

Görüntülemek:

LED (isteğe bağlı)

Vurgulamak:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

Min sipariş miktarı

1 Takım

Fiyat

negotiable

Ambalaj bilgileri

Standart İhracat Karton Ambalajı

Teslim süresi

3 ~ 5 iş günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

200 takım/gün

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

4-20mA 1-5V Smart Pressure Transmitter with -100kpa~60MPa Pressure Range

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

IP65 Smart Pressure Transmitter with -100kpa ~ 60MPa Pressure Range 0
