Name: Local Display Electronic Pressure Transmitter for Level Measurement
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK51
Price: 45.00 USD
Availability: InStock

Evde > Ürünler > Smart Pressure Transmitter >

Local Display Electronic Pressure Transmitter for Level Measurement

smart type pressure transmitter

digital pressure transmitter

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

CE, ISO, HART

Model numarası:

WNK51

Bize Ulaşın

Teklif Et

Local Display Electronic Pressure Transmitter for Level Measurement

Product Details

Medyayı ölçün:

Sıvı, gaz ve buhar

Çıktı sinyalleri:

4~20mA, Hart, Profibüs

Kesinlik:

% 0.075

Basınç aralığı:

-100kpa ~ 70mpa

Koruma Sınıfı:

IP66/67

Muhafaza malzemesi:

Alüminyum

Güç Kaynağı:

24V, 10-30v

Patlamaya dayanıklı:

ExiaIICT4, ExiaIICT6, ExdIICT6

Başvuru:

Basınç ölçümü

Sensör diyaframı:

316L diyafram

Vurgulamak:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Min sipariş miktarı

1 Takım

Fiyat

negotiable

Ambalaj bilgileri

Standart İhracat Karton Ambalajı

Teslim süresi

3 ~ 5 iş günü

Ödeme koşulları

Banka havalesi, Western Union, MoneyGram

Yetenek temini

200 takım/gün

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

En İyi Fiyatı Alın

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

En İyi Fiyatı Alın

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

En İyi Fiyatı Alın

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

En İyi Fiyatı Alın

Bize Ulaşın

Hemen İletişime Geçin

Product Description

Electronic Smart Pressure Transmitter for Level Measurement with Local Display

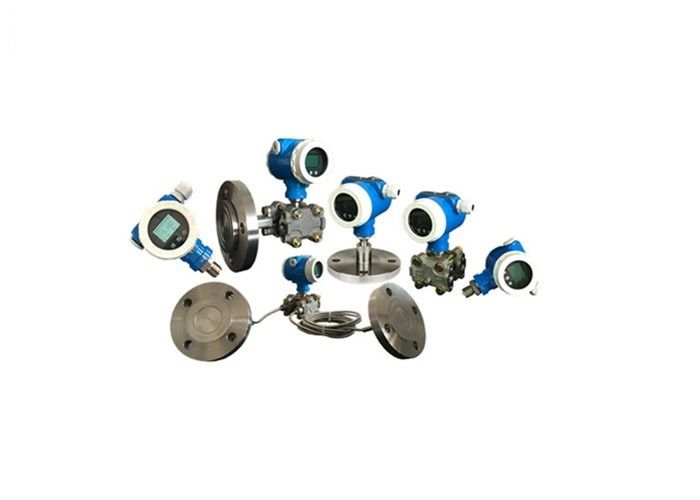

Local Display Electronic Pressure Transmitter for Level Measurement 0

WNK5 series pressure transmitter is the high performance pressure transmitters provided by Hefei WNK Smart Technology Co., Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.

Product application
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Product feature
1. High reference accuracy up to 0.05%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and Exd explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration

Technical data

Measured media	liquid, gas and steam
Pressure range	-100KPa~70MPa
Output signals	4~20mA, Hart, PROFIBUS-PA for option
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Display	LCD, or pointer optional
Housing material	Aluminum14
Process connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	ExiaIICT4, ExiaIICT6, ExdIICT6
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	1.7kg (without bracket or process connection)

Installation diagram

Local Display Electronic Pressure Transmitter for Level Measurement 1

Ordering sheet

Model	Product Details
WNK51	smart high precision pressure transmitter
Code	Approval
A	For non-hazardous areas
1	ExiaIICT6
2	ExiaIICT4
3	ExdIIBT6
For other approvals or more information, please contact with us
Code	Output Code
A	4…20mA
H	4…20mA,HART
P	PROFIBUS-PA
F	FF
Code	Display
A	No display
L	LCD
Code	Housing; Cable entry; Protection
A	Aluminum14,M20×1.5,IP66/67
B	Aluminum 14,G1/2,IP66/67
C	Aluminum14,1/2NPT,IP66/67
Code	Sensor range, for gauge pressure	Code	Sensor range, for absolute pressure
1C	100mbar (10kPa/1mH2O)	2C	100mbar (10kPa/1mH2O)
1E	250mbar (25kPa/2.5mH2O)	2E	250mbar (25kPa/2.5mH2O)
1F	400mbar (40kPa/4mH2O)	2F	400mbar (40kPa/4mH2O)
1H	1bar (100kPa/10mH2O)	2H	1bar (100kPa/10mH2O)
1K	2bar (200kPa/20mH2O)	2K	2bar (200kPa/20mH2O)
1M	4bar (400kPa/40mH2O)	2M	4bar (400kPa/40mH2O)
1P	10bar (1MPa/100mH2O)	2P	10bar (1MPa/100mH2O)
1S	40bar (4MPa/400mH2O)	2S	40bar (4MPa/400mH2O)
1U	100bar (10MPa/1000mH2O)	2U	100bar (10MPa/1000mH2O)
1W	400bar (40MPa/4000mH2O)	2W	400bar (40MPa/4000mH2O)
1X	700bar (70MPa/7000mH2O)	2X	700bar (70MPa/7000mH2O)
Code	Calibration,Unit
1	Sensor range,mbar/bar
2	Sensor range,kPa/MPa
3	Sensor range,mmH2O/mH2O
4	Sensor range,psi
Code	Diaphragm material
1	316L
2	Alloy C-276
X	Other special requirement
For other special kind of diaphragm, please contact with us.
Code	Process connection; screw
GA	Male thread G1/2, inner hole 3mm,316
GB	Male thread G1/2, inner hole 11.4mm,316
GC	Female thread G1/2, inner hole 3mm,316
GD	Female thread G1/2, inner hole 11.4mm,316
NA	Male thread 1/2NPT, inner hole 3mm,316
NB	Male thread 1/2NPT, inner hole 11.4mm,316
NC	Female thread 1/2NPT, inner hole 3mm,316
ND	Female thread 1/2NPT, inner hole 11.4mm,316
MA	Male thread M20×1.5, inner hole 3mm,316
MB	Male thread M20×1.5, inner hole 11.4mm ,316
JX	Other special requirement
For other special connection screw thread, please contact with us.
Code	Process connection material
3	316
H	Alloy C
Code	Overvoltage protection
A	No
M	Overvoltage protection
Code	Mounting bracket
A	No
U	Mounting bracket for pipe
Typical model#:WNK51 AHL A1P21 MA3 AU

Local Display Electronic Pressure Transmitter for Level Measurement 2

Local Display Electronic Pressure Transmitter for Level Measurement 3
